Fuel pipe and mounting parts for BMW 2 Series G42 230iX (2025)

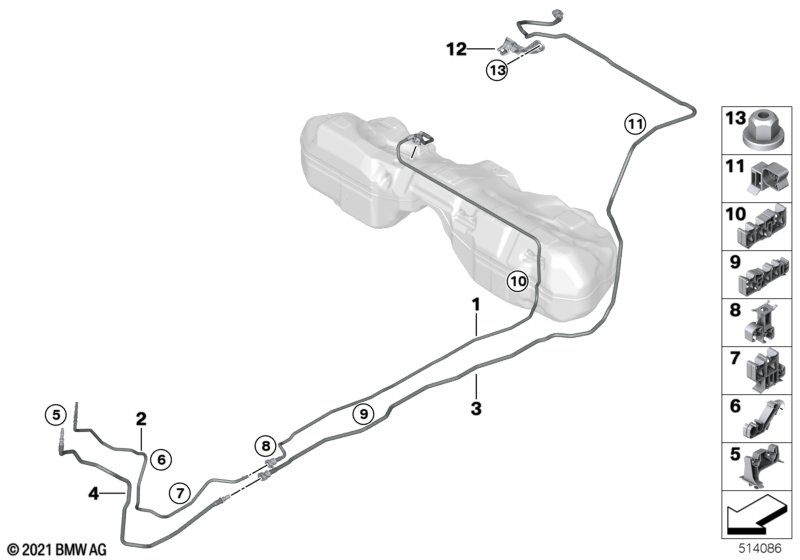

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 2 Series G42 230iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line | 1 | 16128740564 | Shop at ECS Tuning | ||||||
| 02 | Fuel supply line front | 1 | 16125A1A319 | Shop at ECS Tuning | ||||||
| 03 | Scavenge air line | 1 | 16118740568 | Shop at ECS Tuning | ||||||
| 04 | Scavenging line front | 1 | 16135A1A321 | Shop at ECS Tuning | ||||||
| 05 | Clip | 1 | 16127470792 | Shop at ECS Tuning | ||||||
| 06 | Clip | D12 D10 D5 | 1 | 16135A1A325 | Shop at ECS Tuning | |||||
| 07 | Clip | D12 D10 D5 | 1 | 16137385411 | Shop at ECS Tuning | |||||
| 08 | Clip | 1 | 16128485706 | Shop at ECS Tuning | ||||||
| 09 | Clip | D12 2XD10 D5 | 6 | 16127359194 | Shop at ECS Tuning | |||||
| 10 | Wire clip, dual | D10/D12 | 1 | 16127397510 | Shop at ECS Tuning | |||||
| 11 | Pipe clip | 4 | 07145A1A519 | Shop at ECS Tuning | ||||||
| 12 | Holder | 1 | 16229845388 | Shop at ECS Tuning | ||||||
| 13 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning |
