SCR system for BMW 3 Series G21 Touring LCI 320d (2025)

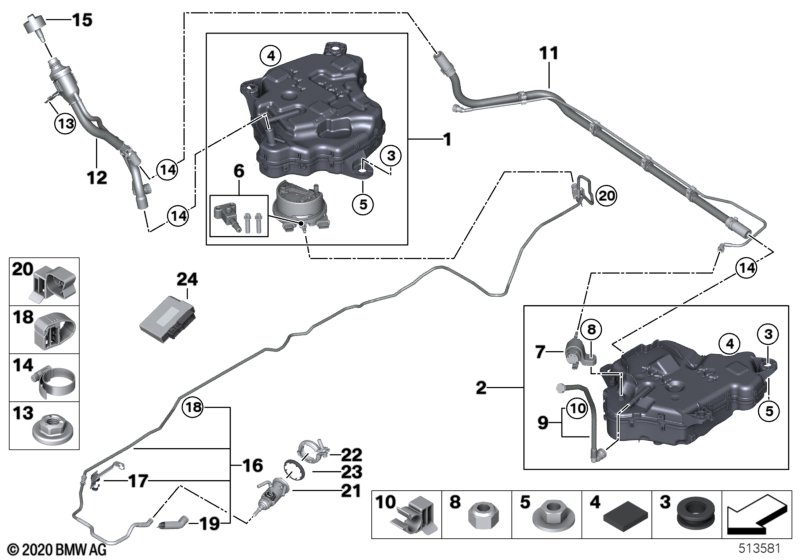

This SCR system technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan or Emissions standard EU5 |
L807A=Yes S161A=No |
|||||||||
| 01 | SCR container active | 1 | 03/2024 | 16197454338 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Diesel exhaust fluid AdBlue | 0.5 US GALLONS | 1 | 03/2024 | 83190441139 | $18.75 | Shop at ECS Tuning | |||
| For vehicles with National version japan or Emissions standard EU5 |
L807A=No S161A=No |
|||||||||
| 01 | SCR container active | 1 | 03/2024 | 16199423387 | Shop at ECS Tuning | |||||
| 02 | SCR container passive | 1 | 16197454339 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Diesel exhaust fluid AdBlue | 0.5 US GALLONS | 1 | 83190441139 | $18.75 | Shop at ECS Tuning | ||||
| 03 | Rubber grommet | 6 | 16111182609 | $1.13 | Shop at ECS Tuning | |||||
| 04 | Base | 43X35X8 MM | 5 | 07147273549 | Shop at ECS Tuning | |||||
| 05 | Hex nut with plate | M6 | 6 | 07147311066 | Shop at ECS Tuning | |||||
| 06 | Repair kit connecting bracket | 1 | 16197485363 | Shop at ECS Tuning | ||||||
| 07 | Transfer pump | 1 | 16197354384 | Shop at ECS Tuning | ||||||
| 08 | Hex nut | M5-8-ZNNIV SI | 1 | 07129905752 | Shop at ECS Tuning | |||||
| 09 | Vent line for passive tank | 1 | 16197474367 | Shop at ECS Tuning | ||||||
| 10 | Wire clip, single | D12-14 | 2 | 16127278367 | Shop at ECS Tuning | |||||
| 11 | Filling system for SCR passive tank | 1 | 16197454344 | Shop at ECS Tuning | ||||||
| 12 | Filling system for SCR | 1 | 16197454341 | Shop at ECS Tuning | ||||||
| 13 | Self-locking hex nut | M6 | 1 | 07148842267 | Shop at ECS Tuning | |||||
| 14 | Hose clamp | L28-33 | 3 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 15 | Cover lid | 1 | 16197485924 | Shop at ECS Tuning | ||||||
| 16 | Metering line | 1 | 16197451323 | Shop at ECS Tuning | ||||||
| 17 | Holder | 1 | 16197469126 | Shop at ECS Tuning | ||||||
| 18 | Clip | 7 | 07147460904 | Shop at ECS Tuning | ||||||
| 19 | Heat protection case metering line | 1 | 16195A2D550 | Shop at ECS Tuning | ||||||
| 20 | Clip, tubing | D12.5 | 1 | 16197464237 | Shop at ECS Tuning | |||||
| 21 | Metering unit | 1 | 11788580209 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw clamp | 1 | 18308590002 | Shop at ECS Tuning | ||||||
| Please observe PUMA measure 65563674. | ||||||||||
| 22 | Screw clamp | 1 | 18308590002 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 18308595104 | Shop at ECS Tuning | ||||||
| 23 | Gasket | 1 | 18308595104 | Shop at ECS Tuning | ||||||
| 24 | Control unit for SCR | 1 | 03/2024 | 16195A0DB23 | Shop at ECS Tuning | |||||
