Activated Charcoal Filter for BMW XM G09 XM (2025)

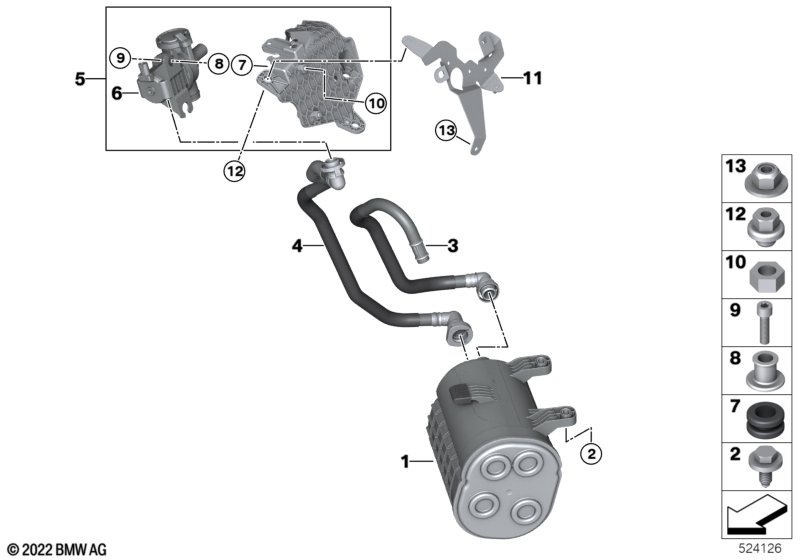

This Activated Charcoal Filter technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version Korea and National version China |
L802A=No L8AAA=No |
||||||||
| 01 | Activated Charcoal Filter | 1 | 16137486244 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt with washer | M6X25-U2 | 2 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 03 | Ventilation line | 1 | 16129797988 | Shop at ECS Tuning | ||||||
| 04 | Ventilation line | 1 | 16139797993 | Shop at ECS Tuning | ||||||
| 05 | Fuel tank isolation valve with holder | 1 | 16119797985 | Shop at ECS Tuning | ||||||
| 06 | Insulation valve | 1 | 16137303949 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Rubber grommet | 2 | 16111182454 | $0.93 | Shop at ECS Tuning | |||||
| -- | Spacer sleeve | 2 | 16117195118 | Shop at ECS Tuning | ||||||
| 07 | Rubber grommet | 2 | 16111182454 | $0.93 | Shop at ECS Tuning | |||||
| 08 | Spacer sleeve | 2 | 16117195118 | Shop at ECS Tuning | ||||||
| 09 | ISA screw | M8X30-8.8-ZNS3 | 2 | 07129904067 | $2.43 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Holder | 1 | 16135A07009 | Shop at ECS Tuning | ||||||
| 12 | Hex nut | 3 | 61358230971 | $0.38 | Shop at ECS Tuning | |||||
| 13 | Self-locking hex nut | M6 | 3 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
