Fuel tank/mounting parts for BMW 5 Series G60 Sedan 520i (2025)

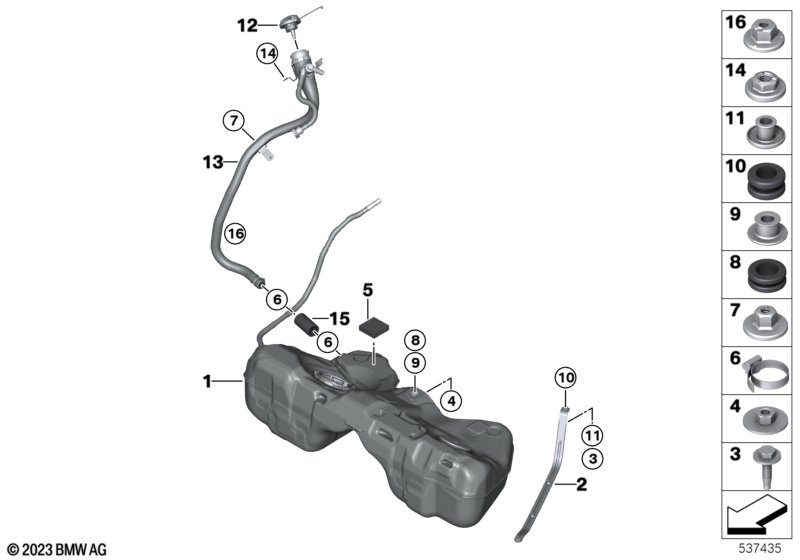

This Fuel tank/mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | Repair kit fuel tank | 60L | 1 | 16115A27D60 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and National version China |
L802A=No L8AAA=No |
|||||||||
| 01 | Repair kit fuel tank | 60L | 1 | 16115A27D47 | NoS | Shop at ECS Tuning | ||||
| 02 | Tensioning strap | 2 | 16115A022D0 | NoS | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X30-PF-U2-8.8 | 4 | 07119906672 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | M8-8.8-ZNS3 | 1 | 07147204294 | Shop at ECS Tuning | |||||
| 05 | Foam-rubber pad | 45X45X12 MM | 7 | 16115A3B061 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | L37-43 | 2 | 07129952117 | $1.09 | Shop at ECS Tuning | ||||
| 07 | Plastic capnut with washer | D=22MM | 1 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Rubber grommet | 1 | 16115A6EA69 | NoS | Shop at ECS Tuning | |||||
| 09 | Spacer sleeve | 1 | 16115A6EA70 | NoS | Shop at ECS Tuning | |||||
| 10 | Rubber grommet | 4 | 16111182454 | $0.93 | Shop at ECS Tuning | |||||
| 11 | Spacer sleeve | 4 | 16117194458 | $3.23 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea or National version China |
L802A=Yes L8AAA=Yes |
|||||||||
| 12 | Filler cap | 1 | 16117470341 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version China |
L802A=No L8AAA=No |
|||||||||
| 12 | Filler cap | 1 | 16117482902 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 13 | Filler pipe | 1 | 16115A01E47 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version China |
L802A=No L8AAA=No |
|||||||||
| 13 | Filler pipe | 1 | 16115A01E40 | NoS | Shop at ECS Tuning | |||||
| 14 | Self-locking hex nut | M6 | 2 | 07148842267 | Shop at ECS Tuning | |||||
| 15 | Filler pipe | 1 | 16115A05BD2 | Shop at ECS Tuning | ||||||
