Fuel pump and fuel level sensor for BMW 5 Series G61 Touring 520i (2025)

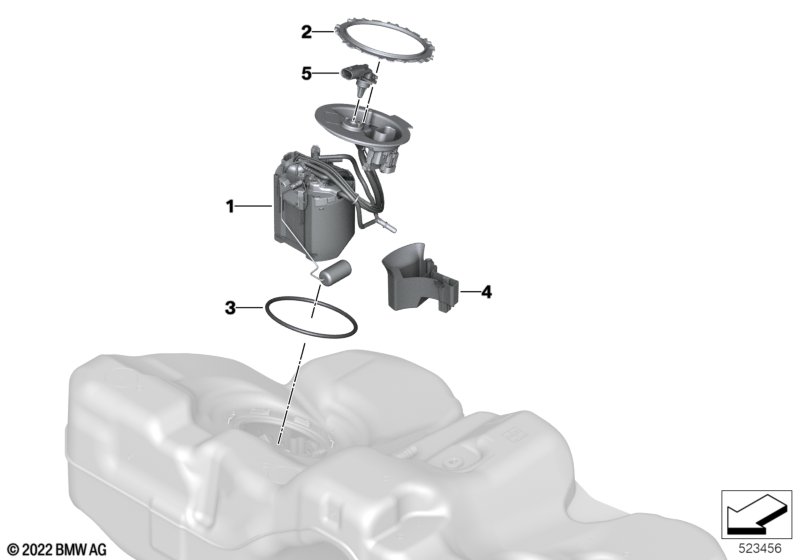

This Fuel pump and fuel level sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Delivery unit | 1 | 16115A2AC81 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | O-ring | 1 | 16117188567 | $5.34 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 01 | Delivery unit | 1 | 16115A2AC89 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | O-ring | 1 | 16117188567 | $5.34 | Shop at ECS Tuning | |||||
| 02 | Closure ring | 1 | 16117471828 | Shop at ECS Tuning | ||||||
| 03 | O-ring | 1 | 16117188567 | $5.34 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 04 | Container | 1 | 16117484135 | Shop at ECS Tuning | ||||||
| 05 | Part not available separately | X | 00000000000 | Shop at ECS Tuning | ||||||
