Fuel pipe and mounting parts for BMW 5 Series G60 Sedan 520i (2025)

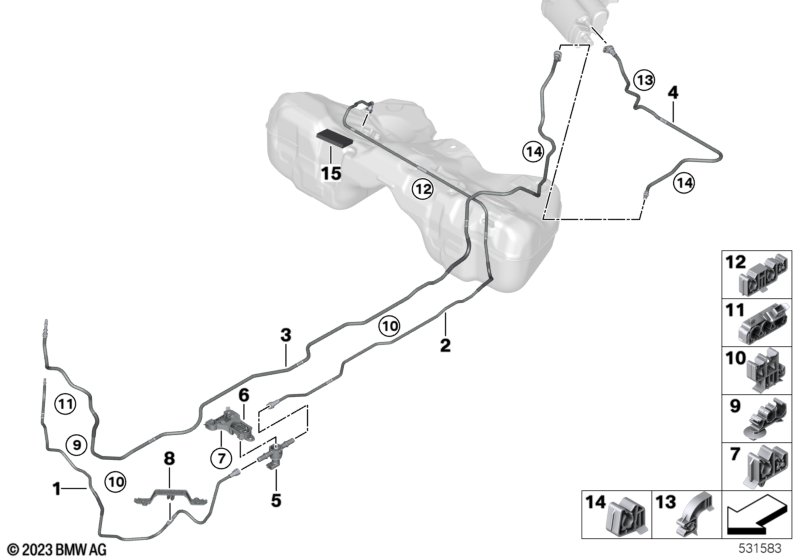

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line | 1 | 16125A02168 | NoS | Shop at ECS Tuning | |||||
| 02 | Fuel supply line | 1 | 16125A02159 | NoS | Shop at ECS Tuning | |||||
| 03 | Purge air line | 1 | 16135A02198 | NoS | Shop at ECS Tuning | |||||
| 04 | Scavenging line rear | 1 | 16137562207 | Shop at ECS Tuning | ||||||
| 05 | Fuel pressure sensor | 1 | 13537952799 | Shop at ECS Tuning | ||||||
| 06 | Holder fuel low-pressure sensor | 1 | 07148848610 | NoS | Shop at ECS Tuning | |||||
| 07 | Line clip | 1 | 07148848611 | NoS | Shop at ECS Tuning | |||||
| 08 | Holder | 1 | 07145A323D6 | Shop at ECS Tuning | ||||||
| 09 | Clip | 2XD12 D10 D5 | 1 | 16137384843 | Shop at ECS Tuning | |||||
| 10 | Clip | D12 D10 D5 | 5 | 16137385411 | Shop at ECS Tuning | |||||
| 11 | Clip | D12 D12/D10 D10 | 1 | 16127385405 | Shop at ECS Tuning | |||||
| 12 | Pipe clip | 4 | 07145A37597 | Shop at ECS Tuning | ||||||
| 13 | Angle clip | 2 | 07145A1A518 | Shop at ECS Tuning | ||||||
| 14 | Pipe clip | 7 | 07145A1A519 | Shop at ECS Tuning | ||||||
| 15 | Set, damping strip | 1 | 16119470920 | Shop at ECS Tuning |
