Fuel tank/mounting parts for BMW 5 Series G90 M5 M5 (2025)

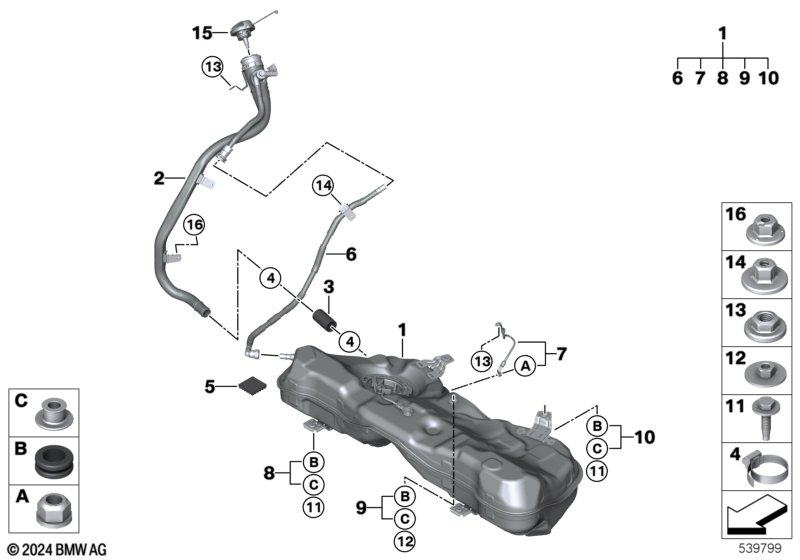

This Fuel tank/mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit fuel tank | 1 | 16115A98D52 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rubber base | 5 | 16115A2AF75 | Shop at ECS Tuning | ||||||
| 02 | Filler pipe | 1 | 16115A01E42 | NoS | Shop at ECS Tuning | |||||
| 03 | Filler pipe | 1 | 16115A05BD2 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | L37-43 | 2 | 07129952117 | $1.09 | Shop at ECS Tuning | ||||
| 05 | Rubber base | 5 | 16115A2AF75 | Shop at ECS Tuning | ||||||
| 06 | Ventilation line | 1 | 16135A355A8 | NoS | Shop at ECS Tuning | |||||
| 07 | Repair kit, ground strap | 1 | 16115A5C0F3 | Shop at ECS Tuning | ||||||
| 08 | Bracket front | 2 | 16115A986E1 | Shop at ECS Tuning | ||||||
| 09 | Bracket center | 1 | 16115A986E3 | Shop at ECS Tuning | ||||||
| 10 | Bracket rear | 2 | 07148867908 | NoS | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X30-PF-U2-8.8 | 4 | 07119906672 | Shop at ECS Tuning | |||||
| 12 | Hex nut with plate | M8-8.8-ZNS3 | 1 | 07147204294 | Shop at ECS Tuning | |||||
| 13 | Self-locking hex nut | M6 | 2 | 07148842267 | Shop at ECS Tuning | |||||
| 14 | Plastic capnut with washer | D=22MM | 1 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Tank cap | 1 | 16115A026E0 | Shop at ECS Tuning | ||||||
