Fuel pipe and mounting parts for BMW 5 Series G99 M5 Touring M5 (2025)

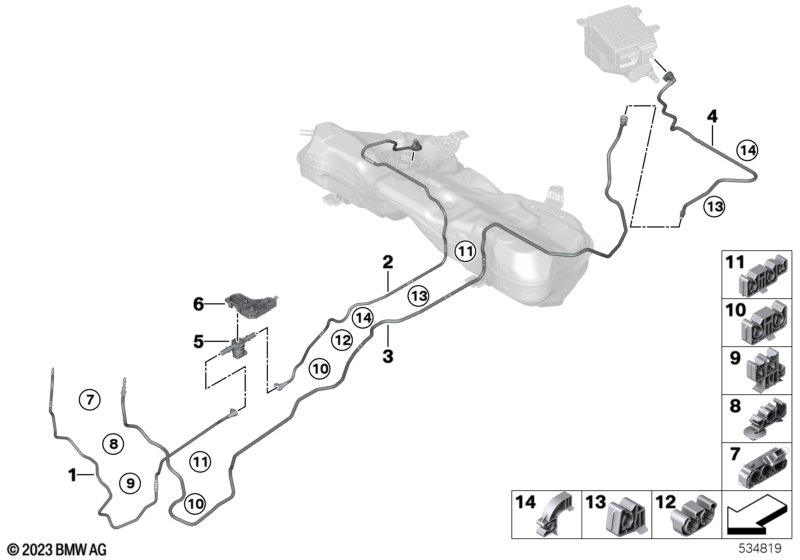

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G99 M5 Touring M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line | 1 | 16127884838 | NoS | Shop at ECS Tuning | |||||
| 02 | Fuel supply line | 1 | 16125A02163 | NoS | Shop at ECS Tuning | |||||
| 03 | Scavenge air line | 1 | 16137889293 | NoS | Shop at ECS Tuning | |||||
| 04 | Scavenging line rear | 1 | 16137889295 | NoS | Shop at ECS Tuning | |||||
| 05 | Not offered by BMW | X | 84210300311 | ENDED | Shop at ECS Tuning | |||||
| 06 | Not offered by BMW | X | 84210300311 | ENDED | Shop at ECS Tuning | |||||
| 07 | Clip | D12 D12/D10 D10 | 1 | 16127385405 | Shop at ECS Tuning | |||||
| 08 | Clip | 2XD12 D10 D5 | 1 | 16137384843 | Shop at ECS Tuning | |||||
| 09 | Clip | D12 D10 D5 | 1 | 16137385411 | Shop at ECS Tuning | |||||
| 10 | Clip | D10 D12 | 2 | 07145A154B0 | Shop at ECS Tuning | |||||
| 11 | Line clip | 2 X D10-12.5 | 4 | 07145A375A4 | Shop at ECS Tuning | |||||
| 12 | Abstandhalter | 2 | 07145A3C8A0 | Shop at ECS Tuning | ||||||
| 13 | Pipe clip | 14 | 07145A1A519 | Shop at ECS Tuning | ||||||
| 14 | Angle clip | 2 | 07145A1A518 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G99 M5 Touring M5 Fuel pipe and mounting parts?
- This technical diagram illustrates the Fuel pipe and mounting parts within the Fuel Supply group for the 5 Series G99 M5 Touring M5 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Fuel supply line (Part #16127884838).
- Which models use the hardware listed in this Fuel pipe and mounting parts?
- The hardware and components featured in the Fuel pipe and mounting parts are specific to the 5 Series G99 M5 Touring M5 produced during 2025. These technical specifications ensure that parts like the Fuel supply line (16127884838) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel pipe and mounting parts assembly?
- Each item in the Fuel pipe and mounting parts corresponds to the numbered list below the illustration. For the 5 Series G99 M5 Touring M5, you can identify the Fuel supply line by locating its position on the schematic, which then links to the official BMW part number 16127884838 for the Fuel Supply section.
