Fuel tank/mounting parts for BMW 1 Series F70 118d (2025)

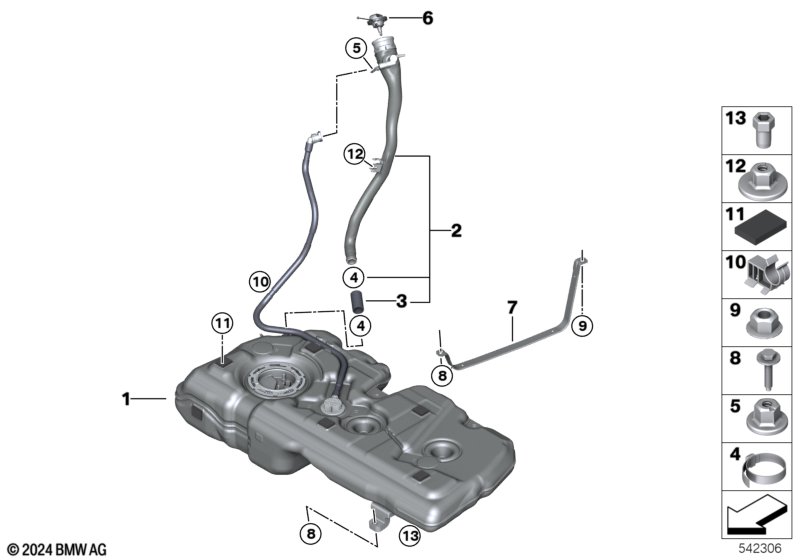

This Fuel tank/mounting parts technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plastic fuel tank | 49L | 1 | 16115A9E071 | NoS | Shop at ECS Tuning | ||||
| 02 | Plastic filler pipe | 1 | 16117458658 | Shop at ECS Tuning | ||||||
| 03 | Filler pipe | 1 | 16117403719 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | L37-43 | 2 | 07129952117 | $1.09 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M6 | 1 | 07148842267 | Shop at ECS Tuning | |||||
| 06 | Filler cap | 1 | 16117482901 | Shop at ECS Tuning | ||||||
| 07 | Tension strap | 1 | 16115A4E032 | NoS | Shop at ECS Tuning | |||||
| 08 | Combination Allen bolt | 8.8 | 2 | 07147381865 | Shop at ECS Tuning | |||||
| 09 | Hex nut with plate | M8 | 3 | 07147381866 | Shop at ECS Tuning | |||||
| 10 | Wire clip, single | D16-18 | 1 | 16127313557 | Shop at ECS Tuning | |||||
| 11 | Base | 43X35X8 MM | 5 | 07147273549 | Shop at ECS Tuning | |||||
| 12 | Plastic capnut with washer | D=22MM | 1 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Bolting pin, short | 2 | 16126766237 | $0.35 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F70 118d Fuel tank/mounting parts?
- This technical diagram illustrates the Fuel tank/mounting parts within the Fuel Supply group for the 1 Series F70 118d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Plastic fuel tank (Part #16115A9E071).
- Which models use the hardware listed in this Fuel tank/mounting parts?
- The hardware and components featured in the Fuel tank/mounting parts are specific to the 1 Series F70 118d produced during 2025. These technical specifications ensure that parts like the Plastic fuel tank (16115A9E071) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank/mounting parts assembly?
- Each item in the Fuel tank/mounting parts corresponds to the numbered list below the illustration. For the 1 Series F70 118d, you can identify the Plastic fuel tank by locating its position on the schematic, which then links to the official BMW part number 16115A9E071 for the Fuel Supply section.
