Fuel pipe and mounting parts for BMW 3 Series G21 Touring LCI M340iX (2025)

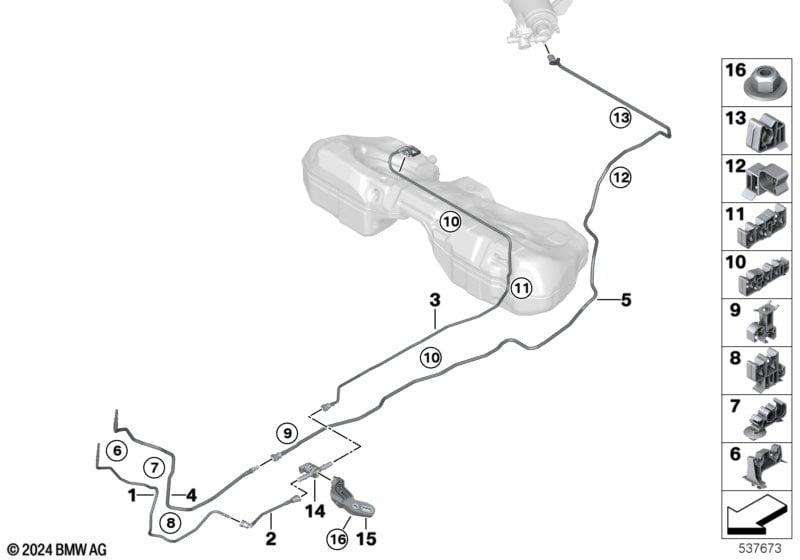

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| 01 | Fuel supply line | 1 | 16125A5CAD5 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 02 | Fuel pipe | 1 | 16125A23787 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 03 | Fuel supply line | 1 | 16129469598 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 03 | Fuel supply line | 1 | 16125A23783 | NoS | Shop at ECS Tuning | |||||
| 04 | Scavenging line front | 1 | 16135A5CAD6 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 05 | Purge air line | 1 | 16135A68229 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 05 | Purge air line | 1 | 16135A68230 | NoS | Shop at ECS Tuning | |||||
| 06 | Clip | 1 | 16127470792 | Shop at ECS Tuning | ||||||
| 07 | Clip | D12 D10 D5 | 1 | 16135A1A325 | Shop at ECS Tuning | |||||
| 08 | Clip | D12 D10 D5 | 1 | 16137385411 | Shop at ECS Tuning | |||||
| 09 | Clip | 1 | 16128485706 | Shop at ECS Tuning | ||||||
| 10 | Clip | D12 2XD10 D5 | 6 | 16127359194 | Shop at ECS Tuning | |||||
| 11 | Wire clip, dual | D10/D12 | 1 | 16127397510 | Shop at ECS Tuning | |||||
| 12 | Clip, tubing | D12.5 | 4 | 16197464237 | Shop at ECS Tuning | |||||
| 13 | Pipe clip | 3 | 07145A1A519 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 14 | Fuel pressure sensor | 1 | 13537952799 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 14 | Fuel pressure sensor | 1 | 13539897156 | Shop at ECS Tuning | ||||||
| 15 | Bracket, fuel low-pressure sensor | 1 | 13539455454 | Shop at ECS Tuning | ||||||
| 16 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring LCI M340iX Fuel pipe and mounting parts?
- This technical diagram illustrates the Fuel pipe and mounting parts within the Fuel Supply group for the 3 Series G21 Touring LCI M340iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Fuel supply line (Part #16125A5CAD5).
- Which models use the hardware listed in this Fuel pipe and mounting parts?
- The hardware and components featured in the Fuel pipe and mounting parts are specific to the 3 Series G21 Touring LCI M340iX produced during 2025. These technical specifications ensure that parts like the Fuel supply line (16125A5CAD5) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel pipe and mounting parts assembly?
- Each item in the Fuel pipe and mounting parts corresponds to the numbered list below the illustration. For the 3 Series G21 Touring LCI M340iX, you can identify the Fuel supply line by locating its position on the schematic, which then links to the official BMW part number 16125A5CAD5 for the Fuel Supply section.
