Fuel pipe and mounting parts for BMW 2 Series F74 Gran Coupé 220 (2025)

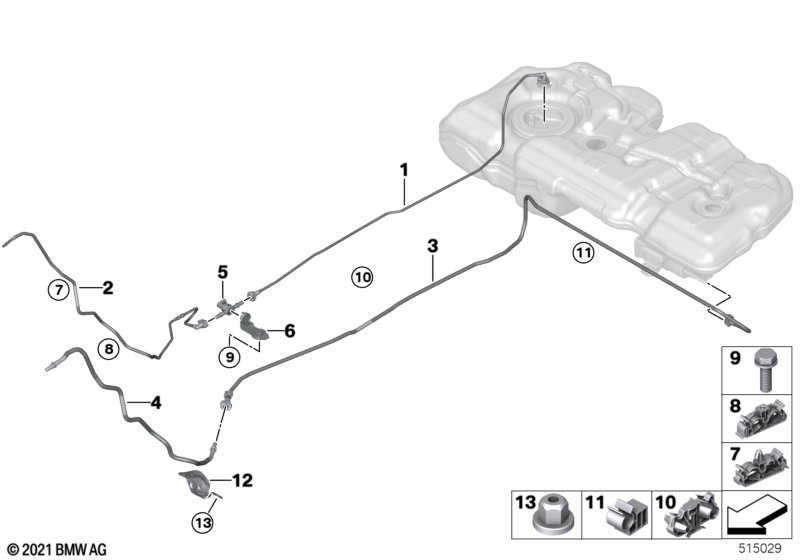

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 220. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Korea or Country control for Brazil 00464 |
L802A=Yes S8LBA=Yes |
|||||||||
| 01 | Fuel supply line | 1 | 16125A35FF0 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and Country control for Brazil 00464 |
L802A=No S8LBA=No |
|||||||||
| 01 | Fuel supply line | 1 | 16125A3AFC2 | NoS | Shop at ECS Tuning | |||||
| 02 | Fuel supply line front | 1 | 16129894834 | Shop at ECS Tuning | ||||||
| 03 | Scavenge air line | 1 | 16135A3AFC3 | NoS | Shop at ECS Tuning | |||||
| 04 | Purge air line front | 1 | 16135A98B84 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea or Country control for Brazil 00464 |
L802A=Yes S8LBA=Yes |
|||||||||
| 05 | Fuel pressure sensor | 1 | 13539897156 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Country control for Brazil 00464 |
L802A=No S8LBA=No |
|||||||||
| 05 | Fuel pressure sensor | 1 | 13537952799 | Shop at ECS Tuning | ||||||
| 06 | Bracket, fuel low-pressure sensor | 1 | 13539455451 | Shop at ECS Tuning | ||||||
| 07 | Wire clip, dual | 2 | 16129426343 | Shop at ECS Tuning | ||||||
| 08 | Wire clip, dual | 2 | 16129426342 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt with washer | M8X25 ZNS3 | 1 | 07119904793 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Wire clip, dual | D8,12 | 5 | 16127258752 | Shop at ECS Tuning | |||||
| 11 | Pipe clip | D14 | 2 | 16126766397 | $1.05 | Shop at ECS Tuning | ||||
| 12 | Guard plate, fuel lines | 1 | 16127470984 | Shop at ECS Tuning | ||||||
| 13 | Plastic nut for coarse threaded pin | M6 | 3 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F74 Gran Coupé 220 Fuel pipe and mounting parts?
- This technical diagram illustrates the Fuel pipe and mounting parts within the Fuel Supply group for the 2 Series F74 Gran Coupé 220 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Fuel supply line (Part #16125A35FF0).
- Which models use the hardware listed in this Fuel pipe and mounting parts?
- The hardware and components featured in the Fuel pipe and mounting parts are specific to the 2 Series F74 Gran Coupé 220 produced during 2025. These technical specifications ensure that parts like the Fuel supply line (16125A35FF0) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel pipe and mounting parts assembly?
- Each item in the Fuel pipe and mounting parts corresponds to the numbered list below the illustration. For the 2 Series F74 Gran Coupé 220, you can identify the Fuel supply line by locating its position on the schematic, which then links to the official BMW part number 16125A35FF0 for the Fuel Supply section.
