Radiator/frame for BMW 5 Series E34 535i (1992)

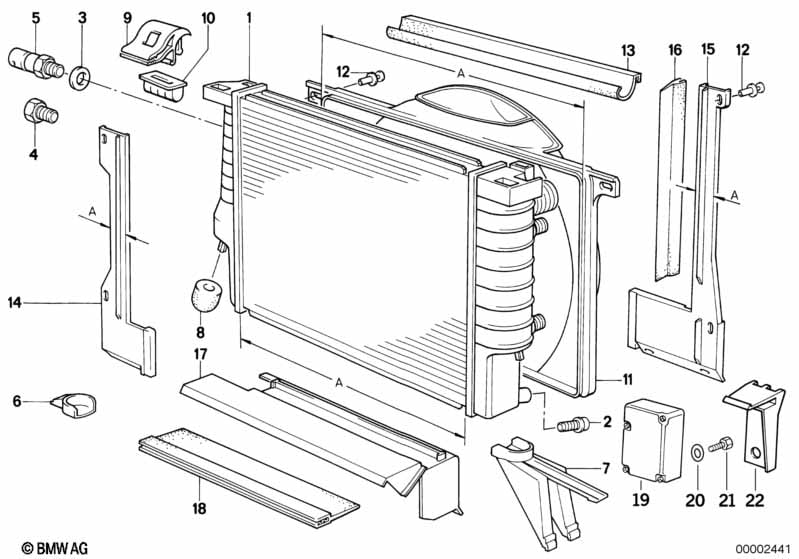

This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator with transmission oil cooler | A=550MM | 1 | 17111712365 | $766.70 | Shop at ECS Tuning | ||||
| 01 | Radiator with transmission oil cooler | A=550MM | 1 | 17111723455 | Shop at ECS Tuning | |||||
| 01 | Radiator with transmission oil cooler | A=550MM | 1 | 06/1988 | 17111712365 | $766.70 | Shop at ECS Tuning | |||
| 01 | Radiator with transmission oil cooler | A=550MM | 1 | 06/1988 | 17111723455 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Radiator with transmission oil cooler | A=610MM | 1 | 17111723467 | $766.70 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 01 | Radiator with transmission oil cooler | A=610MM | 1 | 06/1988 | 17111723467 | $766.70 | Shop at ECS Tuning | |||
| For vehicles with Air conditioning ONLY APPLIES TO MODIFICATION AIR CONDITIONING SYSTEM |
S530A=Yes |
|||||||||
| 01 | Radiator with transmission oil cooler | A=610MM | 1 | 03/1988 | 17111723467 | $766.70 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Double temperature switch | 91/99CEL | 1 | 03/1988 | 61311378073 | $32.46 | Shop at ECS Tuning | |||
| -- | Covering right | A=10MM | 1 | 03/1988 | 17111712022 | $9.83 | Shop at ECS Tuning | |||
| -- | Covering left | A=30MM | 1 | 03/1988 | 17111712344 | $14.75 | Shop at ECS Tuning | |||
| -- | Bracket f.radiator | A=30MM | 1 | 03/1988 | 17111712347 | $3.22 | Shop at ECS Tuning | |||
| -- | Covering Lower | L=483MM | 1 | 03/1988 | 17111719330 | $7.73 | Shop at ECS Tuning | |||
| -- | Fan shroud | A=610MM | 1 | 03/1988 | 17112227101 | $27.20 | Shop at ECS Tuning | |||
| -- | Water hose | 1 | 03/1988 | 11531722682 | $83.00 | Shop at ECS Tuning | ||||
| -- | Oil filter without oil cooler connection | 1 | 03/1988 | 11421720691 | ENDED | Shop at ECS Tuning | ||||
| -- | Gasket Asbestos Free | 1 | 03/1988 | 11421722688 | $2.42 | Shop at ECS Tuning | ||||
| 02 | Drain plug radiator | M10 | 1 | 17111719384 | $7.57 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A14X20-CUSN | 1 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 04 | Screw plug | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 04 | Screw plug | M14X1,5-ZN/PBX | 1 | 07119919146 | $2.35 | Shop at ECS Tuning | ||||
| 05 | Double temperature switch | 91/99CEL | 1 | 61311378073 | $32.46 | SI 120787(777) | Shop at ECS Tuning | |||
| 06 | Bracket f.radiator | 10MM | 1 | 17111709333 | $1.80 | Shop at ECS Tuning | ||||
| 07 | Bracket f.radiator | A=30MM | 1 | 17111712347 | $3.22 | Shop at ECS Tuning | ||||
| 07 | Bracket f.radiator | A=90MM | 1 | 06/1988 | 17111709332 | $4.78 | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 07 | Bracket f.radiator | A=30MM | 1 | 06/1988 | 17111712347 | $3.22 | Shop at ECS Tuning | |||
| 08 | Rubber buffer | 2 | 17111178412 | $1.68 | Shop at ECS Tuning | |||||
| 09 | Bracket upper | 2 | 17111712660 | $1.57 | Shop at ECS Tuning | |||||
| 10 | Rubber Mounting | 2 | 17201719414 | $1.18 | Shop at ECS Tuning | |||||
| 11 | Fan shroud | A=550MM | 1 | 06/1988 | 17101709393 | $38.57 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 11 | Fan shroud | A=610MM | 1 | 17112227101 | $27.20 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 11 | Fan shroud | A=610MM | 1 | 06/1988 | 17112227101 | $27.20 | Shop at ECS Tuning | |||
| 12 | Expanding rivet | 9 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 13 | Profile-gasket | L=647MM | 1 | 17101712609 | $6.47 | Shop at ECS Tuning | ||||
| 13 | Profile-gasket | L=483MM | 1 | 17111719321 | $3.80 | Shop at ECS Tuning | ||||
| 14 | Covering right | A=10MM | 1 | 17111712022 | $9.83 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 14 | Covering right | A=90MM | 1 | 17111712024 | $14.87 | Shop at ECS Tuning | ||||
| 15 | Covering left | A=90MM | 1 | 06/1988 | 17111712023 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 15 | Covering left | A=30MM | 1 | 17111712344 | $14.75 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 15 | Covering left | A=30MM | 1 | 06/1988 | 17111712344 | $14.75 | Shop at ECS Tuning | |||
| 16 | Profile-gasket | L=647MM | 1 | 17101712609 | $6.47 | Shop at ECS Tuning | ||||
| 16 | Profile-gasket | L=483MM | 1 | 17111719321 | $3.80 | Shop at ECS Tuning | ||||
| 17 | Covering Lower | L=395MM | 1 | 06/1988 | 17111719333 | $7.55 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 17 | Covering Lower | L=483MM | 1 | 17111719330 | $7.73 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 17 | Covering Lower | L=483MM | 1 | 06/1988 | 17111719330 | $7.73 | Shop at ECS Tuning | |||
| 18 | Profile-gasket | L=547MM | 1 | 06/1988 | 17111723015 | $42.38 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 18 | Profile-gasket | L=483MM | 1 | 17111719321 | $3.80 | Shop at ECS Tuning | ||||
| 19 | Sensor f. AUC | 1 | 64111390325 | $177.33 | Shop at ECS Tuning | |||||
| 20 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 21 | Hex bolt | M5X 12MM | 1 | 07119905138 | Shop at ECS Tuning | |||||
| 22 | Bracket f.sensor AUC | AUC | 1 | 64118390598 | $1.80 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
