Expansion tank for BMW 5 Series E34 535i (1993)

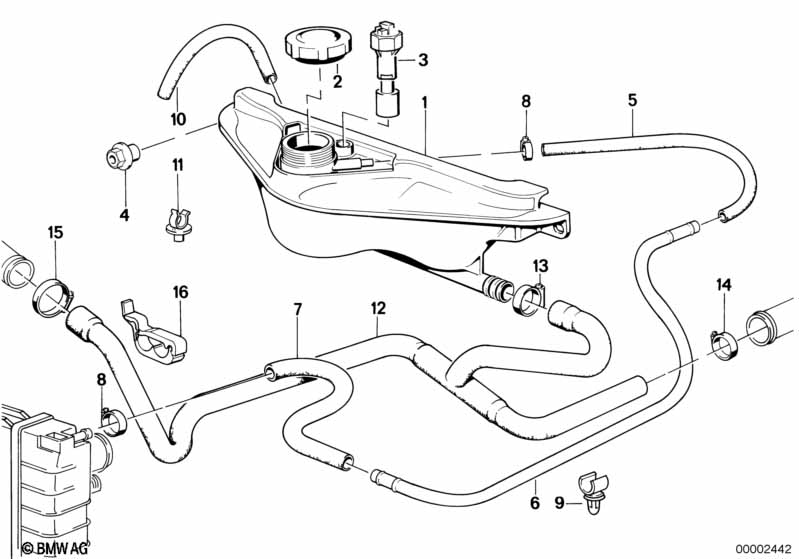

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 17111719110 | $79.43 | Shop at ECS Tuning | |||||
| 02 | Radiator cap | 2,0BAR | 1 | 17117639022 | Shop at ECS Tuning | |||||
| 03 | Levelling switch radiator | L=109MM | 1 | 61311378320 | $32.46 | Shop at ECS Tuning | ||||
| 04 | Push-button | 2 | 17111709419 | $0.33 | Shop at ECS Tuning | |||||
| 05 | Vent hose | 8X13MM | X | 17121712736 | $17.72 | Shop at ECS Tuning | ||||
| 06 | Vent pipe | 1 | 17111712356 | $10.62 | Shop at ECS Tuning | |||||
| 07 | Vent hose | 1 | 17111712329 | $10.72 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | 13,1-15,3 | 4 | 16121176918 | $1.76 | Shop at ECS Tuning | ||||
| 09 | Clip | 4 | 17111712004 | $0.98 | Shop at ECS Tuning | |||||
| 10 | Hose | 7X10MM | X | 17111150232 | $3.89 | +core | Shop at ECS Tuning | |||
| 11 | Hose clamp | D=9MM | 1 | 17111712868 | $1.18 | Shop at ECS Tuning | ||||
| 12 | Hose f radiator and engine return | 1 | 11531711002 | $90.26 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | L32-38 | 1 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | 2 | 11531718959 | $4.86 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
