Expansion tank for BMW 3 Series E30 320i

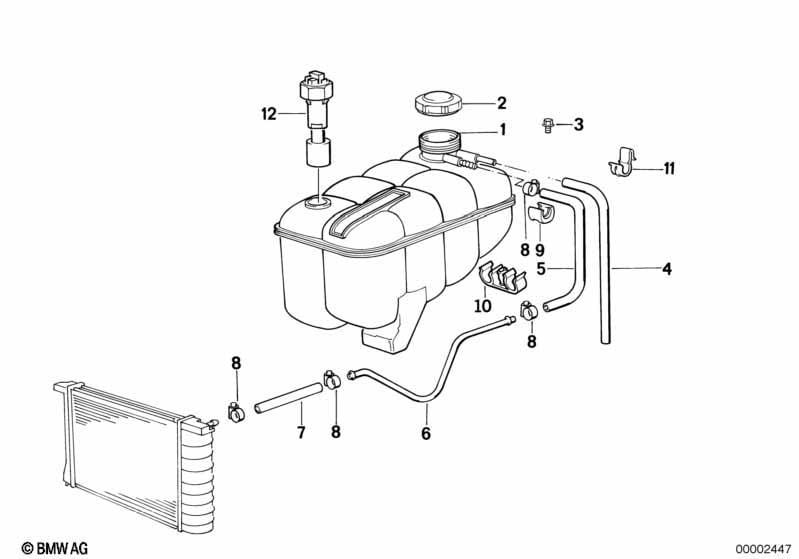

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 09/1987 | 17111712641 | $79.43 | +core | Shop at ECS Tuning | |||
| 02 | Radiator cap | 1,4BAR | 1 | 09/1987 | 01/1993 | 17111742232 | $17.82 | ENDED, +core | Shop at ECS Tuning | |
| 04 | Hose | 7X10MM | X | 09/1987 | 17111150232 | $3.89 | +core | Shop at ECS Tuning | ||
| 04 | Hose | 7X10MM | X | 09/1987 | 17111150232 | $3.89 | +core | Shop at ECS Tuning | ||
| 05 | Hose | 1 | 09/1987 | 17121719374 | $16.27 | Shop at ECS Tuning | ||||
| 07 | Hose | 1 | 09/1987 | 17121719374 | $16.27 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L12-14,5 | 2 | 09/1987 | 32411712735 | $0.62 | Shop at ECS Tuning | |||
| 09 | Cap | 1 | 09/1987 | 17121719356 | $0.43 | Shop at ECS Tuning | ||||
| 10 | Bracket expansion tank | 1 | 09/1987 | 17111719190 | $0.83 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | 1 | 09/1987 | 17111719199 | $1.18 | Shop at ECS Tuning | ||||
| 12 | Levelling switch radiator | L=109MM | 1 | 61311378320 | $32.46 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Expansion tank?
- This technical diagram illustrates the Expansion tank within the Radiator group for the 3 Series E30 320i. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #17111712641).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 3 Series E30 320i. These technical specifications ensure that parts like the Expansion tank (17111712641) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 17111712641 for the Radiator section.
