Radiator/frame for BMW 3 Series E30 318i

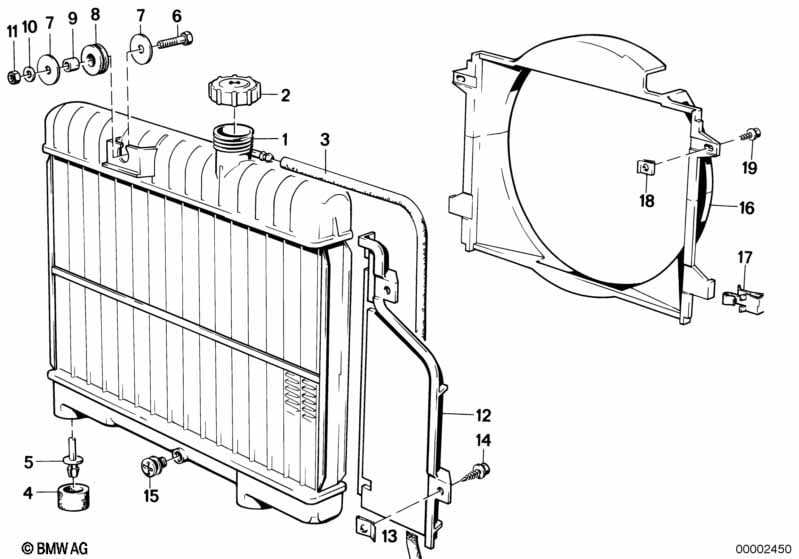

This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator with transmission oil cooler | 1 | 09/1984 | 17111707811 | $432.62 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Oil cooling pipe | 1 | 09/1984 | 17221177812 | $55.15 | ENDED | Shop at ECS Tuning | |||
| -- | Return pipe | 1 | 09/1984 | 17221177813 | $93.47 | ENDED | Shop at ECS Tuning | |||
| 02 | Radiator cap | 1,2BAR | 1 | 17114379047 | $20.84 | Shop at ECS Tuning | ||||
| 03 | Hose | 7X10MM | X | 17111150232 | $3.89 | +core | Shop at ECS Tuning | |||
| 04 | Rubber Mounting | 2 | 17111150984 | $2.74 | Shop at ECS Tuning | |||||
| 05 | Expanding rivet | 2 | 17111150983 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Washer | 7X29X2 | 2 | 51436440260 | $0.39 | Shop at ECS Tuning | ||||
| 08 | Rubber grommet | 1 | 17111117442 | $1.27 | Shop at ECS Tuning | |||||
| 09 | Spacer sleeve | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 10 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Self-locking hex nut | M6 | 1 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Covering left | 1 | 17111176260 | ENDED | Shop at ECS Tuning | |||||
| 13 | Body nut | ST4.8-1 | 2 | 01/1989 | 07129904222 | $0.11 | ENDED | Shop at ECS Tuning | ||
| 13 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 14 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Drain plug radiator | M10 | 1 | 17111719384 | $7.57 | Shop at ECS Tuning | ||||
| 16 | Fan shroud | 1 | 09/1984 | 17111177004 | $25.14 | Shop at ECS Tuning | ||||
| 17 | Clamp | 2 | 09/1984 | 17111115041 | $1.05 | Shop at ECS Tuning | ||||
| 18 | Body nut | B6,5 | 2 | 32412482060 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 19 | Sheet metal screw | B6,5X16 | 2 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
