Radiator/frame for BMW 3 Series E30 M3 (1991)

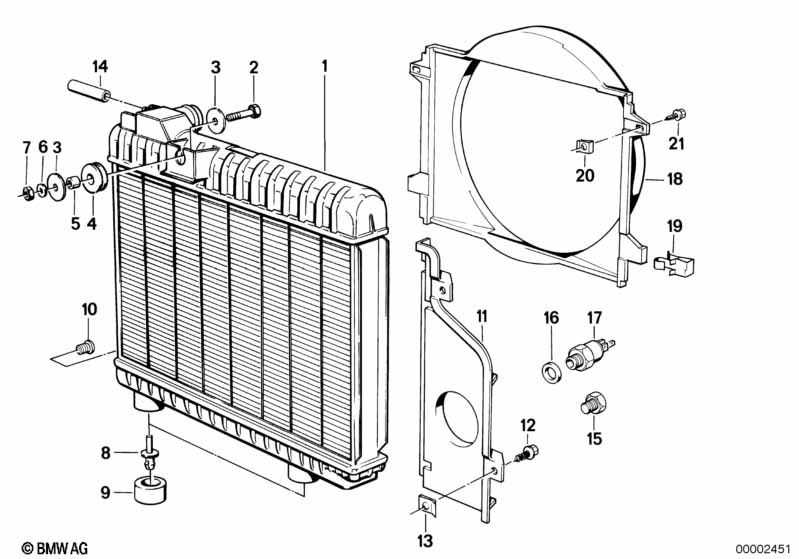

This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator | 1 | 03/1987 | 17112225592 | $457.42 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 01 | Radiator | 1 | 03/1987 | 17112225592 | $457.42 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Washer | 7X29X2 | 2 | 51436440260 | $0.39 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 1 | 17111117442 | $1.27 | Shop at ECS Tuning | |||||
| 05 | Spacer sleeve | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 06 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M6 | 1 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Expanding rivet | 2 | 17111150983 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 09 | Rubber Mounting | 2 | 17111150984 | $2.74 | Shop at ECS Tuning | |||||
| Only for new coolers from 2024 on | ||||||||||
| 10 | Drain plug radiator | M10X1,25 | 1 | 17115B600A5 | Shop at ECS Tuning | |||||
| Only for coolers from MAHLE Behr | ||||||||||
| 10 | Drain plug radiator | M10 | 1 | 17111719384 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Cover | 1 | 17111309347 | $8.70 | Shop at ECS Tuning | |||||
| 12 | Hex head screw | ST4,8X16-ZNS3 | 3 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Body nut | ST4.8-1 | 3 | 07/1991 | 07129904222 | $0.11 | ENDED | Shop at ECS Tuning | ||
| 13 | Plug-in nut | M5 | 3 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 14 | Hose | 7X10MM | X | 17111150232 | $3.89 | +core | Shop at ECS Tuning | |||
| 15 | Screw plug | M14X1,5-ZN/PBX | 1 | 07119919146 | $2.35 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | A14X18-CU | 1 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 17 | Double temperature switch | 91/99CEL | 1 | 03/1987 | 61311378073 | $32.46 | SI 120787(777) | Shop at ECS Tuning | ||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 17 | Temperature switch | 108CEL | 1 | 12632241342 | $43.62 | SI 120787777 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
