Radiator/frame for BMW 3 Series E30 320i (1988)

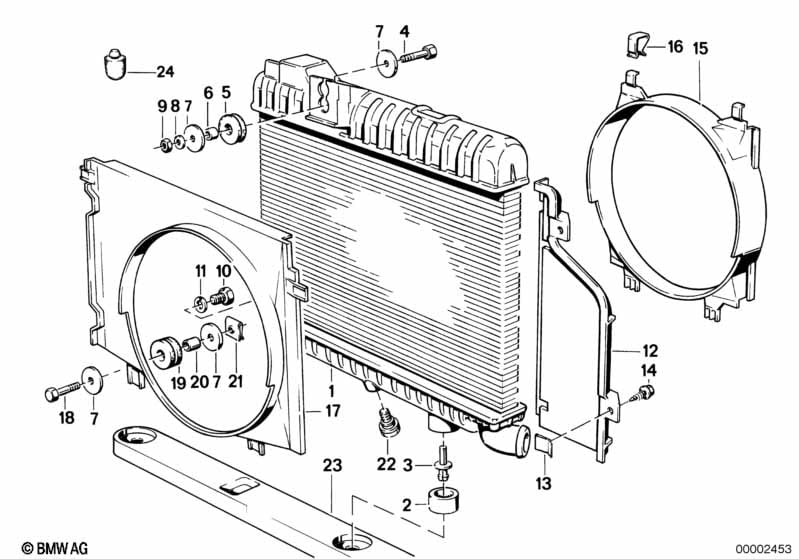

This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Switzerland and Sweden version |
L804A=Yes =Yes |
|||||||||
| 01 | Radiator | 1 | 09/1985 | 17111709497 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber Mounting | 2 | 17111150984 | $2.74 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Rubber grommet | 1 | 17111117442 | $1.27 | Shop at ECS Tuning | |||||
| 06 | Spacer sleeve | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 07 | Washer | 7X29X2 | 2 | 51436440260 | $0.39 | Shop at ECS Tuning | ||||
| 08 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M6 | 1 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Screw plug | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 11 | Gasket ring | A14X20-CUAS | 1 | 07119963244 | $0.41 | Shop at ECS Tuning | ||||
| 12 | Covering left | 1 | 17111176260 | ENDED | Shop at ECS Tuning | |||||
| 13 | Body nut | ST4.8-1 | 2 | 01/1991 | 07129904222 | $0.11 | ENDED | Shop at ECS Tuning | ||
| 13 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 13 | Body nut | ST4,8-1 | 2 | 04/1991 | 07129925735 | $0.18 | ENDED | Shop at ECS Tuning | ||
| 14 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Clamping spring | 2 | 17111176944 | $0.70 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning and Hot-climate version |
S530A=Yes S823A=Yes |
|||||||||
| 16 | Clamping spring | 2 | 17111177988 | $1.17 | Shop at ECS Tuning | |||||
| 18 | Hex head screw | ST6,3X38-C | 2 | 07119916886 | $0.96 | Shop at ECS Tuning | ||||
| 19 | Rubber grommet | 2 | 17111117442 | $1.27 | Shop at ECS Tuning | |||||
| 20 | Spacer sleeve | ZNS3 | 2 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 21 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 22 | Drain plug radiator | M10 | 1 | 17111719384 | $7.57 | Shop at ECS Tuning | ||||
| 23 | Bracket | 1 | 17101177917 | $49.26 | Shop at ECS Tuning | |||||
| 24 | Rubber buffer | 1 | 09/1985 | 17111709489 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
