Radiator/frame for BMW 3 Series E30 320i

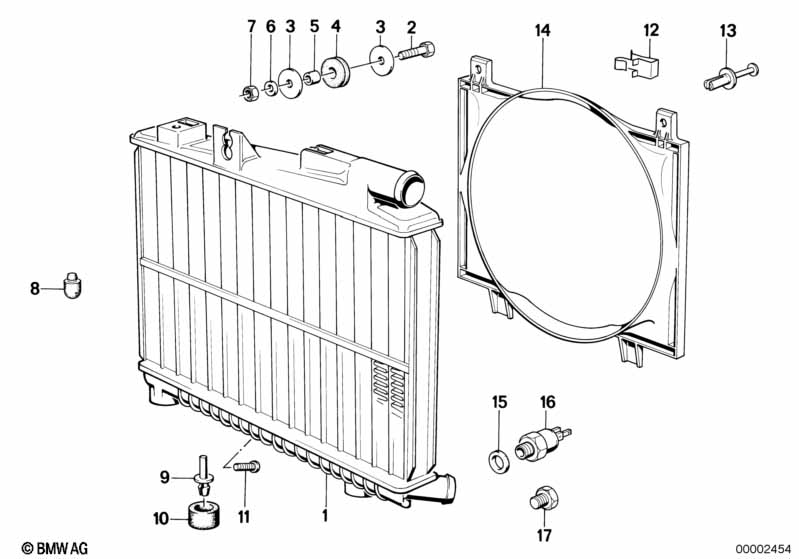

This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO CATALYST CATALYZER PREPARATION CONVENTIONAL EXHAUST TECHNIQUE |
|||||||||
| 01 | Radiator with transmission oil cooler | 1 | 09/1987 | 17111707564 | $533.83 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Radiator with transmission oil cooler | A=550MM | 1 | 09/1987 | 17111712484 | $599.29 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 01 | Radiator with transmission oil cooler | A=550MM | 1 | 09/1987 | 17111712484 | $599.29 | ENDED | Shop at ECS Tuning | ||
| 02 | Hex bolt | M6X30-8.8-ZNS3 | 1 | 09/1987 | 07119904116 | $0.38 | Shop at ECS Tuning | |||
| 03 | Washer | 7X29X2 | 2 | 09/1987 | 51436440260 | $0.39 | Shop at ECS Tuning | |||
| 04 | Rubber grommet | 1 | 09/1987 | 17111117442 | $1.27 | Shop at ECS Tuning | ||||
| 05 | Spacer sleeve | ZNS3 | 1 | 09/1987 | 07146977328 | $1.21 | Shop at ECS Tuning | |||
| 06 | Washer | A6,4-200HV-ZNS3 | 1 | 09/1987 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 07 | Self-locking hex nut | M6 | 1 | 09/1987 | 51417053138 | $0.38 | Shop at ECS Tuning | |||
| 08 | Rubber buffer | 1 | 09/1987 | 17111709489 | ENDED | Shop at ECS Tuning | ||||
| 09 | Expanding rivet | 2 | 09/1987 | 17111150983 | $0.65 | ENDED | Shop at ECS Tuning | |||
| 10 | Rubber Mounting | 2 | 09/1987 | 17111150984 | $2.74 | Shop at ECS Tuning | ||||
| 11 | Drain plug radiator | M10 | 1 | 09/1987 | 17111719384 | $7.57 | Shop at ECS Tuning | |||
| 12 | Clamping spring | 2 | 09/1987 | 17111176944 | $0.70 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 12 | Clamping spring | 2 | 09/1987 | 17111177988 | $1.17 | Shop at ECS Tuning | ||||
| 13 | Expanding rivet | 2 | 09/1987 | 17111712963 | $0.27 | Shop at ECS Tuning | ||||
| 14 | Fan shroud | A=450MM | 1 | 09/1987 | 17111707565 | $62.78 | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 14 | Fan shroud | A=550MM | 1 | 09/1987 | 17111177201 | $25.14 | Shop at ECS Tuning | |||
| 15 | Gasket ring | A14X18-CU | 1 | 09/1987 | 07119963201 | $0.18 | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 16 | Temperature switch | 91CEL | 1 | 09/1987 | 61311364272 | $29.04 | SI 120787777 | Shop at ECS Tuning | ||
| 16 | Temperature switch | 99CEL | 1 | 09/1987 | 61311364273 | $29.04 | Shop at ECS Tuning | |||
| 16 | Double temperature switch | 91/99CEL | 1 | 09/1987 | 61311378073 | $32.46 | SI 120787(777) | Shop at ECS Tuning | ||
| 17 | Screw plug | AM14X1,5 | 1 | 09/1987 | 07119909704 | Shop at ECS Tuning | ||||
| 17 | Screw plug | M14X1,5-ZN/PBX | 1 | 09/1987 | 07119919146 | $2.35 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
