Expansion tank for BMW 5 Series E28 525e (1987)

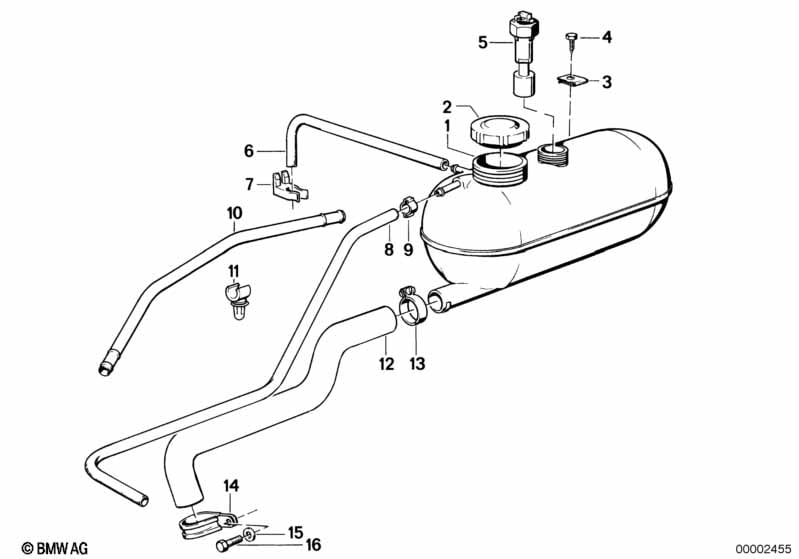

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 17112241974 | $64.73 | ENDED | Shop at ECS Tuning | ||||
| WITHOUT LEVELLING SWITCH |
||||||||||
| 01 | Expansion tank | 1 | 17111707540 | $52.21 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Screw cap | 1 | 17111719430 | $3.43 | Shop at ECS Tuning | |||||
| WITHOUT LEVELLING SWITCH |
||||||||||
| -- | Label | 1 | 17112241971 | ENDED | Shop at ECS Tuning | |||||
| WITHOUT LEVELLING SWITCH |
||||||||||
| 02 | Radiator cap | 1,2BAR | 1 | 17114379047 | $20.84 | Shop at ECS Tuning | ||||
| 03 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 04 | Fillister head self-tapping screw | ST6,3X19-Z1 | 2 | 07119906794 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Levelling switch radiator | L=109MM | 1 | 61311375715 | $27.84 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| 05 | Levelling switch radiator | L=109MM | 1 | 61311378320 | $32.46 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Expansion tank | X | 17111707540 | $52.21 | SI 170187714 | Shop at ECS Tuning | ||||
| 06 | Hose | 7X10MM | 1 | 17111150232 | $3.89 | +core | Shop at ECS Tuning | |||
| 07 | Bracket breather pipe | 1 | 16131177583 | $1.08 | Shop at ECS Tuning | |||||
| 08 | Vent hose | 8X13MM | X | 17121712736 | $17.72 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 10 | Vent pipe | 1 | 17111709495 | $9.86 | ENDED | Shop at ECS Tuning | ||||
| 11 | Clip | 1 | 17111712004 | $0.98 | Shop at ECS Tuning | |||||
| 12 | Water hose | 1 | 11531287999 | $16.63 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | L32-38 | 2 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 14 | Clamp | D=28/6,4 | 1 | 11531267334 | $1.61 | Shop at ECS Tuning | ||||
| 15 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Hexagon screw with flange | M6X55 | 1 | 07119903174 | $0.74 | ENDED | Shop at ECS Tuning | |||
