Radiator/frame for BMW 3 Series E30 320i (1990)

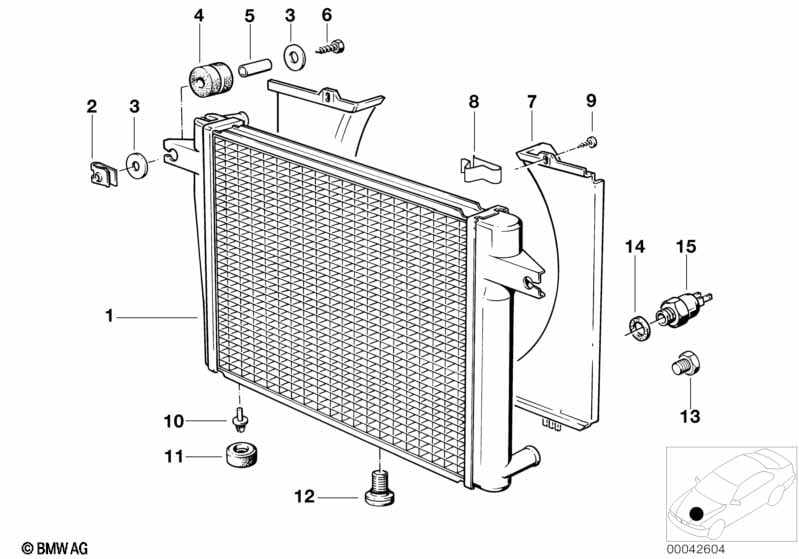

This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | CATALYST CATALYZER PREPARATION |
|||||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 03 | Washer | 7X29X2 | 4 | 51436440260 | $0.39 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 2 | 17111117442 | $1.27 | Shop at ECS Tuning | |||||
| 05 | Spacer sleeve | ZNS3 | 2 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 06 | Hex head screw | ST6,3X38-C | 2 | 07119916886 | $0.96 | Shop at ECS Tuning | ||||
| 07 | Fan shroud | A=550MM | 1 | 17111177201 | $25.14 | Shop at ECS Tuning | ||||
| 08 | Clamping spring | 2 | 17111177988 | $1.17 | Shop at ECS Tuning | |||||
| 09 | Fillister head self-tapping screw | ST4,2X13-Z2 | 2 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Expanding rivet | 2 | 17111150983 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 11 | Rubber Mounting | 2 | 17111150984 | $2.74 | Shop at ECS Tuning | |||||
| 12 | Drain plug radiator | M10 | 1 | 17111719384 | $7.57 | Shop at ECS Tuning | ||||
| 13 | Screw plug | AM14X1,5 | 2 | 07119909704 | Shop at ECS Tuning | |||||
| 14 | Gasket ring | A14X18-CU | 2 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Air conditioning |
L807A=Yes S530A=Yes |
|||||||||
| 15 | Temperature switch | 91CEL | 1 | 61311364272 | $29.04 | SI 120787777 | Shop at ECS Tuning | |||
| 15 | Temperature switch | 99CEL | 1 | 61311364273 | $29.04 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
