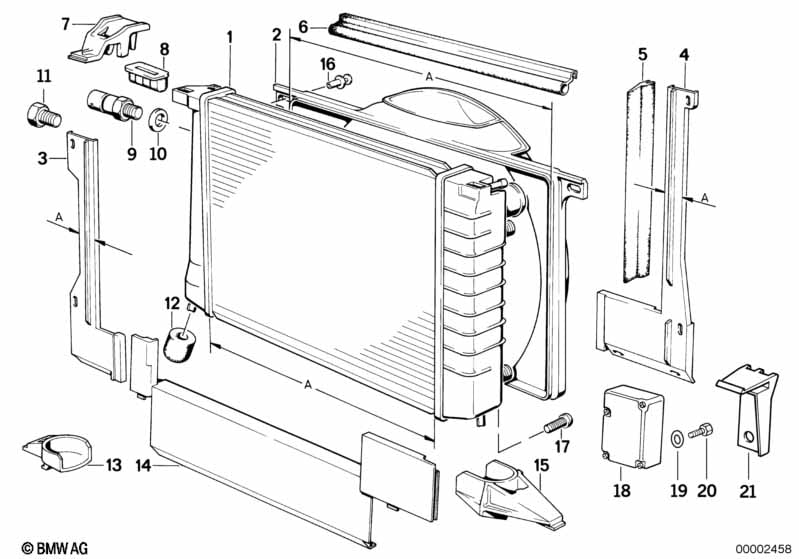

Radiator/frame for BMW 7 Series E32 735iL (1992)
This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator with transmission oil cooler | A=550MM | 1 | 17111712365 | $766.70 | Shop at ECS Tuning | ||||
| 01 | Radiator with transmission oil cooler | A=550MM | 1 | 17111723455 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO MODIFICATION AIR CONDITIONING SYSTEM |
||||||||||
| 01 | Radiator with transmission oil cooler | A=610MM | 1 | 17111723467 | $766.70 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Double temperature switch | 91/99CEL | 1 | 61311378073 | $32.46 | Shop at ECS Tuning | ||||
| -- | Covering right | A=10MM | 1 | 17111712022 | $9.83 | Shop at ECS Tuning | ||||
| -- | Covering left | A=30MM | 1 | 17111712344 | $14.75 | Shop at ECS Tuning | ||||
| -- | Bracket f.radiator | A=30MM | 1 | 17111712347 | $3.22 | Shop at ECS Tuning | ||||
| -- | Covering Lower | L=483MM | 1 | 17111719330 | $7.73 | Shop at ECS Tuning | ||||
| -- | Fan shroud | A=608MM | 1 | 17111723327 | $26.13 | Shop at ECS Tuning | ||||
| -- | Water hose | 1 | 11531714391 | $83.00 | Shop at ECS Tuning | |||||
| -- | Water hose | 1 | 11531722682 | $83.00 | Shop at ECS Tuning | |||||
| -- | Oil filter without oil cooler connection | 1 | 11421720691 | ENDED | Shop at ECS Tuning | |||||
| -- | Gasket Asbestos Free | 1 | 11421722688 | $2.42 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Radiator with transmission oil cooler | A=550MM | 1 | 17111712365 | $766.70 | Shop at ECS Tuning | ||||
| 01 | Radiator with transmission oil cooler | A=550MM | 1 | 17111723455 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Radiator with transmission oil cooler | A=610MM | 1 | 17111723467 | $766.70 | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning or Hot-climate version |
S534A=Yes S823A=Yes |
|||||||||
| 01 | Radiator with transmission oil cooler | A=610MM | 1 | 17111723467 | $766.70 | Shop at ECS Tuning | ||||
| 02 | Fan shroud | A=548MM | 1 | 17111709392 | $38.57 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 02 | Fan shroud | A=608MM | 1 | 17111723327 | $26.13 | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning or Hot-climate version |
S534A=Yes S823A=Yes |
|||||||||
| 02 | Fan shroud | A=608MM | 1 | 17111723327 | $26.13 | Shop at ECS Tuning | ||||
| 03 | Covering right | A=10MM | 1 | 17111712022 | $9.83 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 03 | Covering right | A=10MM | 1 | 17111712022 | $9.83 | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning or Hot-climate version |
S534A=Yes S823A=Yes |
|||||||||
| 03 | Covering right | A=10MM | 1 | 17111712022 | $9.83 | Shop at ECS Tuning | ||||
| 04 | Covering left | A=90MM | 1 | 17111712023 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 04 | Covering left | A=30MM | 1 | 17111712344 | $14.75 | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning or Hot-climate version |
S534A=Yes S823A=Yes |
|||||||||
| 04 | Covering left | A=30MM | 1 | 17111712344 | $14.75 | Shop at ECS Tuning | ||||
| 05 | Profile-gasket | L=483MM | 1 | 17111719321 | $3.80 | Shop at ECS Tuning | ||||
| 06 | Profile-gasket | L=647MM | 1 | 17101712609 | $6.47 | Shop at ECS Tuning | ||||

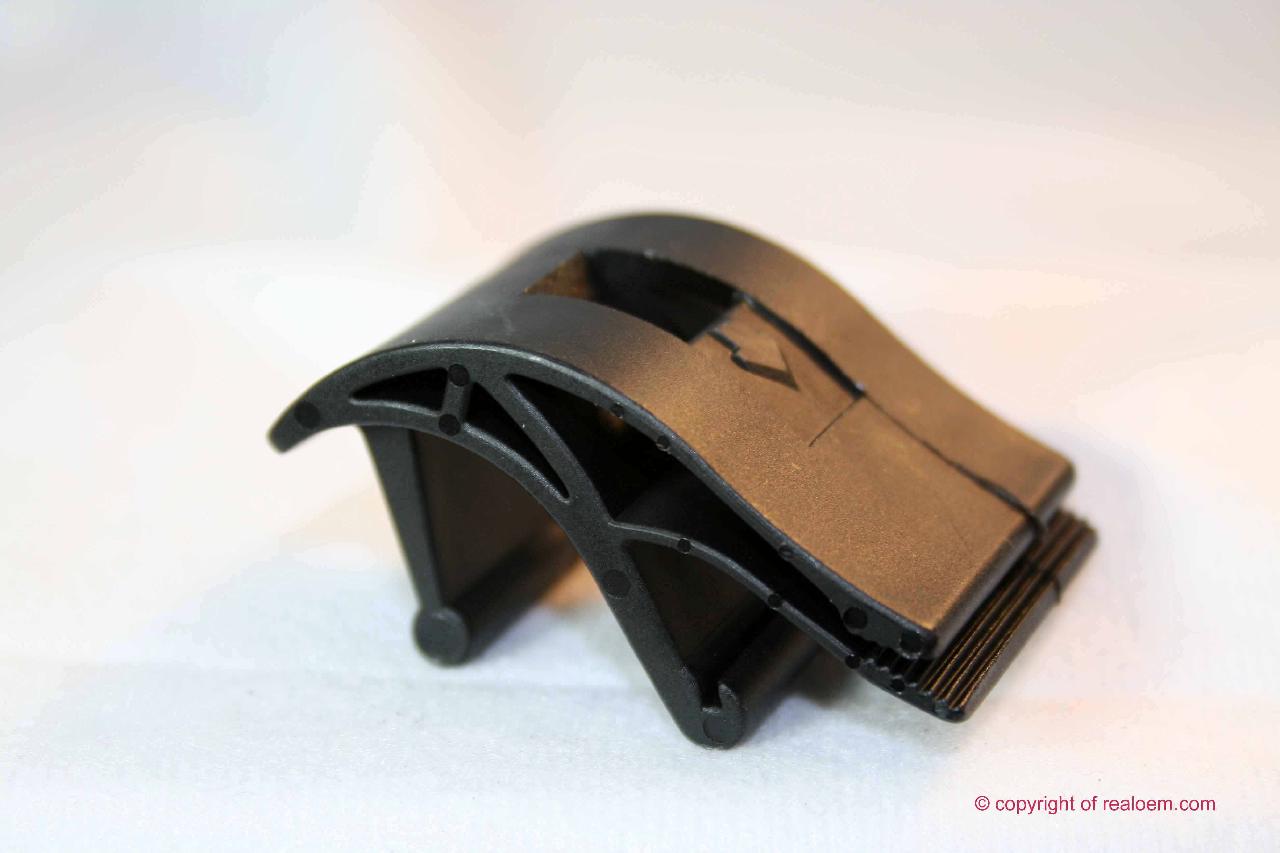

| 07 | Bracket upper | 2 | 17111712660 | $1.57 | Shop at ECS Tuning | |||||
| 08 | Rubber Mounting | 2 | 17111712911 | $1.18 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 08 | Rubber Mounting | 2 | 17111178450 | $1.22 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning or Hot-climate version |
S534A=Yes S823A=Yes |
|||||||||
| 09 | Double temperature switch | 91/99CEL | 1 | 61311378073 | $32.46 | SI 120787(777) | Shop at ECS Tuning | |||
| 10 | Gasket ring | A14X20-CUAS | 1 | 07119963244 | $0.41 | Shop at ECS Tuning | ||||
| 11 | Screw plug | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 12 | Rubber buffer | 2 | 17111178412 | $1.68 | Shop at ECS Tuning | |||||

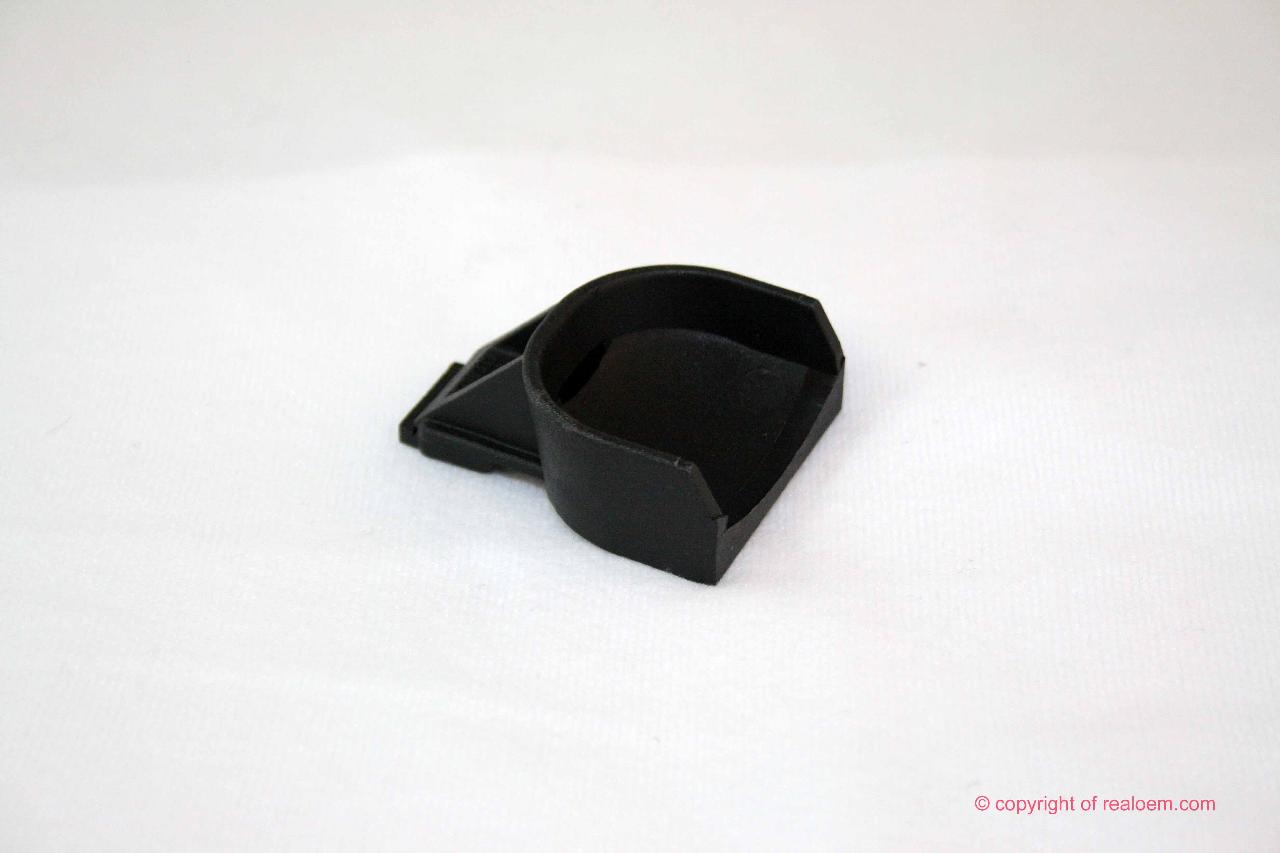

| 13 | Bracket f.radiator | 10MM | 1 | 17111709333 | $1.80 | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 14 | Covering Lower | L=483MM | 1 | 12/1989 | 17111719330 | $7.73 | Shop at ECS Tuning | |||
| 15 | Bracket f.radiator | A=90MM | 1 | 17111709332 | $4.78 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||

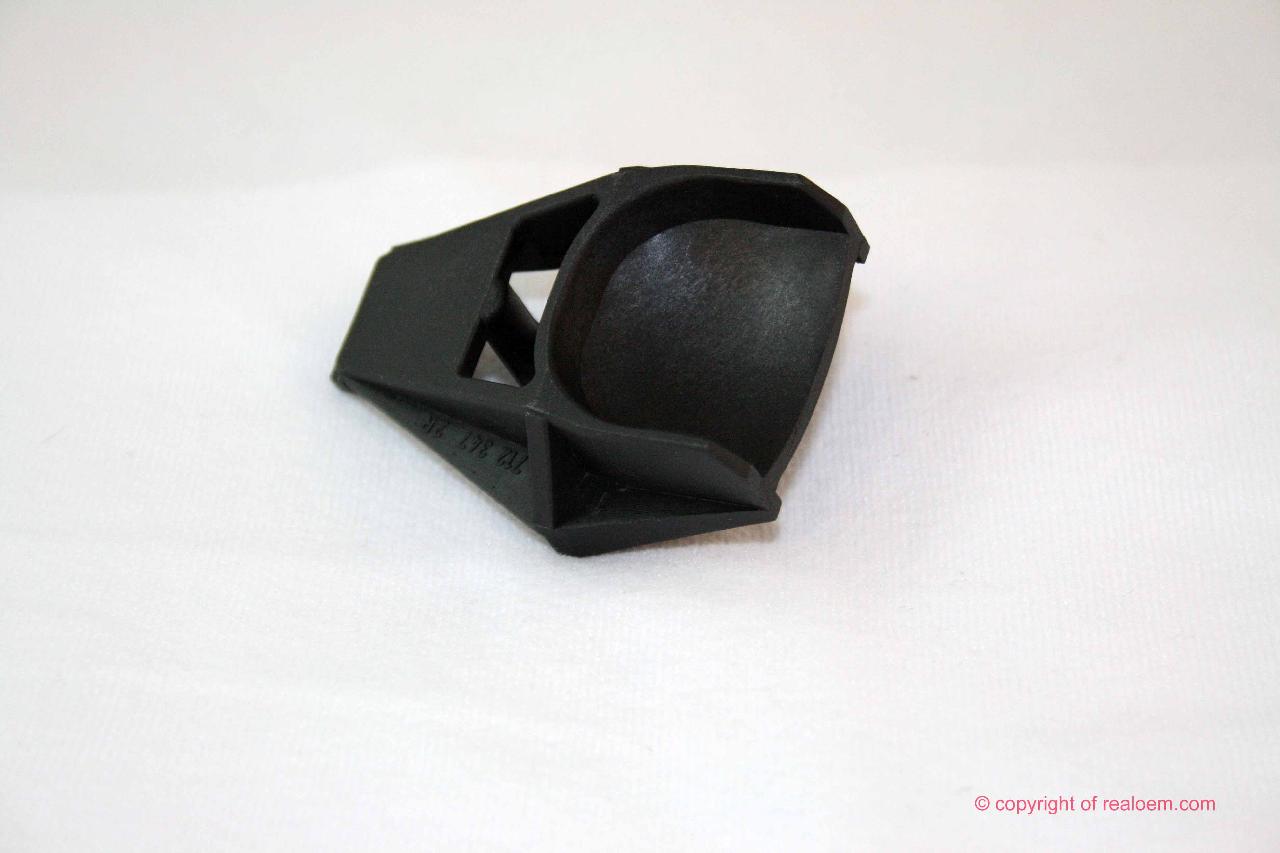

| 15 | Bracket f.radiator | A=30MM | 1 | 17111712347 | $3.22 | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning or Hot-climate version |
S534A=Yes S823A=Yes |
|||||||||
| 15 | Bracket f.radiator | A=30MM | 1 | 17111712347 | $3.22 | Shop at ECS Tuning | ||||
| 16 | Expanding rivet | X | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 17 | Drain plug radiator | M10 | 1 | 17111719384 | $7.57 | Shop at ECS Tuning | ||||
| 18 | Sensor f. AUC | 1 | 64111390325 | $177.33 | Shop at ECS Tuning | |||||
| 19 | Washer | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M5X 12MM | 3 | 07119905138 | Shop at ECS Tuning | |||||
| 21 | Bracket f.sensor AUC | AUC | 1 | 64118390598 | $1.80 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 735iL Radiator/frame?
- This technical diagram illustrates the Radiator/frame within the Radiator group for the 7 Series E32 735iL produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Radiator with transmission oil cooler (Part #17111712365).
- Which models use the hardware listed in this Radiator/frame?
- The hardware and components featured in the Radiator/frame are specific to the 7 Series E32 735iL produced during 1992. These technical specifications ensure that parts like the Radiator with transmission oil cooler (17111712365) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Radiator/frame assembly?
- Each item in the Radiator/frame corresponds to the numbered list below the illustration. For the 7 Series E32 735iL, you can identify the Radiator with transmission oil cooler by locating its position on the schematic, which then links to the official BMW part number 17111712365 for the Radiator section.
