Expansion tank for BMW Z1 E30 Z1 (1991)

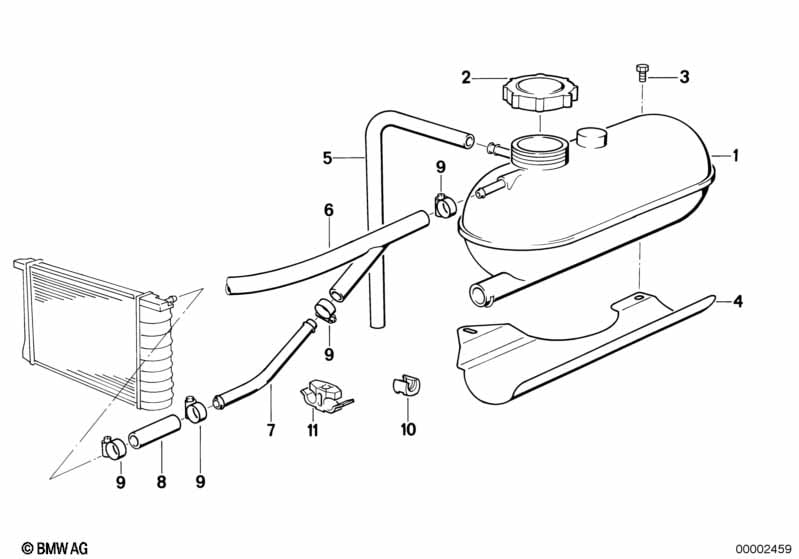

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the Z1 E30 Z1. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 17112241974 | $64.73 | ENDED | Shop at ECS Tuning | ||||
| 01 | Expansion tank | 1 | 17111707540 | $52.21 | SI 170187714 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Screw cap | 1 | 17111719430 | $3.43 | Shop at ECS Tuning | |||||
| -- | Label | 1 | 17112241971 | ENDED | Shop at ECS Tuning | |||||
| 02 | Radiator cap | 1,2BAR | 1 | 17114379047 | $20.84 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 04 | Protection plate | 1 | 17112296116 | $29.30 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hose | 7X10MM | X | 17111150232 | $3.89 | +core | Shop at ECS Tuning | |||
| 06 | Water hose | 1 | 11531730457 | $122.07 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cap | D=7MM | 1 | 17101723703 | Shop at ECS Tuning | |||||
| 09 | Hose clamp | L12-14,5 | 4 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Cap | 2 | 17121719356 | $0.43 | Shop at ECS Tuning | |||||
| 11 | Cable clip | 3 | 63121379313 | $0.50 | ENDED | Shop at ECS Tuning | ||||
