Radiator/frame for BMW 6 Series E24 633CSi (1979)

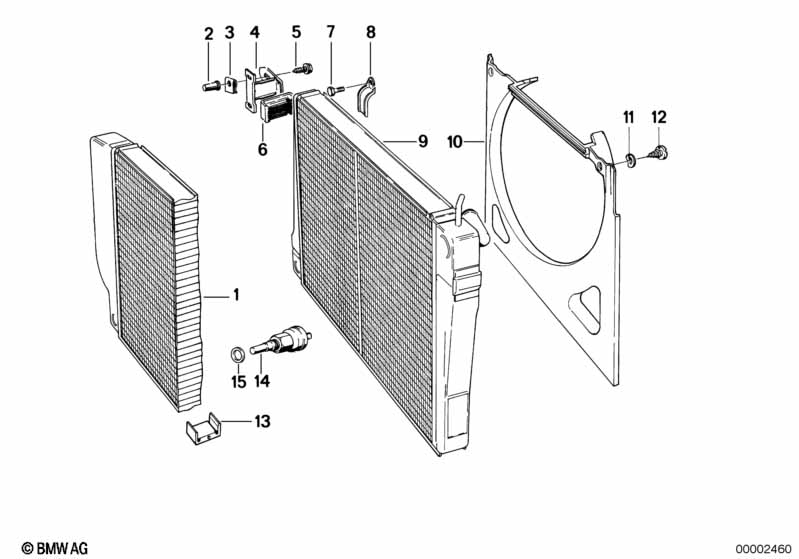

This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator with transmission oil cooler | 1 | 09/1982 | 17111121296 | $934.33 | Shop at ECS Tuning | ||||
| 02 | Protective plug | 2 | 09/1982 | 17114670114 | $0.26 | Shop at ECS Tuning | ||||
| 03 | Body nut | ST4,2-2 | 2 | 09/1982 | 07129904245 | $0.25 | Shop at ECS Tuning | |||
| 04 | Support | 1 | 09/1982 | 17111109957 | $5.52 | Shop at ECS Tuning | ||||

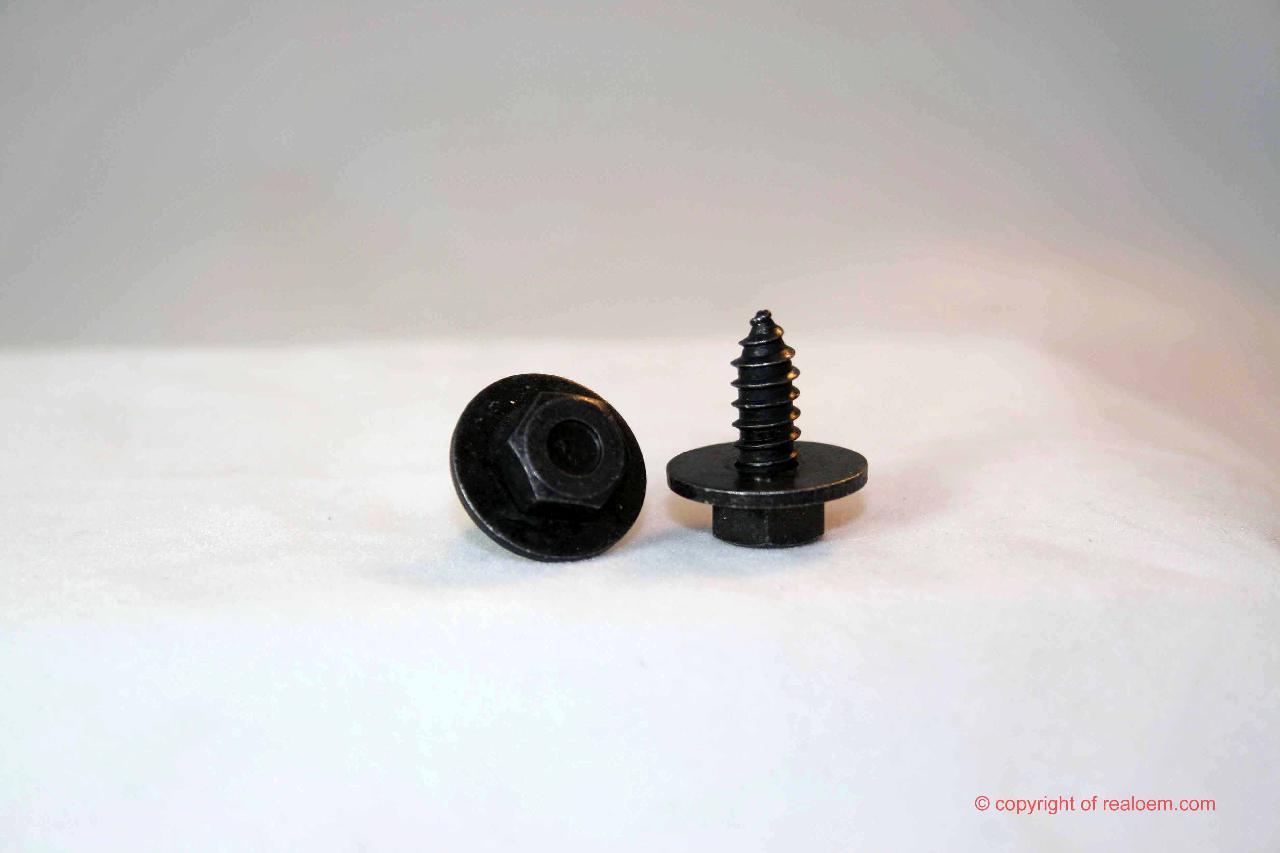

| 05 | Sheet metal screw | B6,5X16 | 2 | 09/1982 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | ||

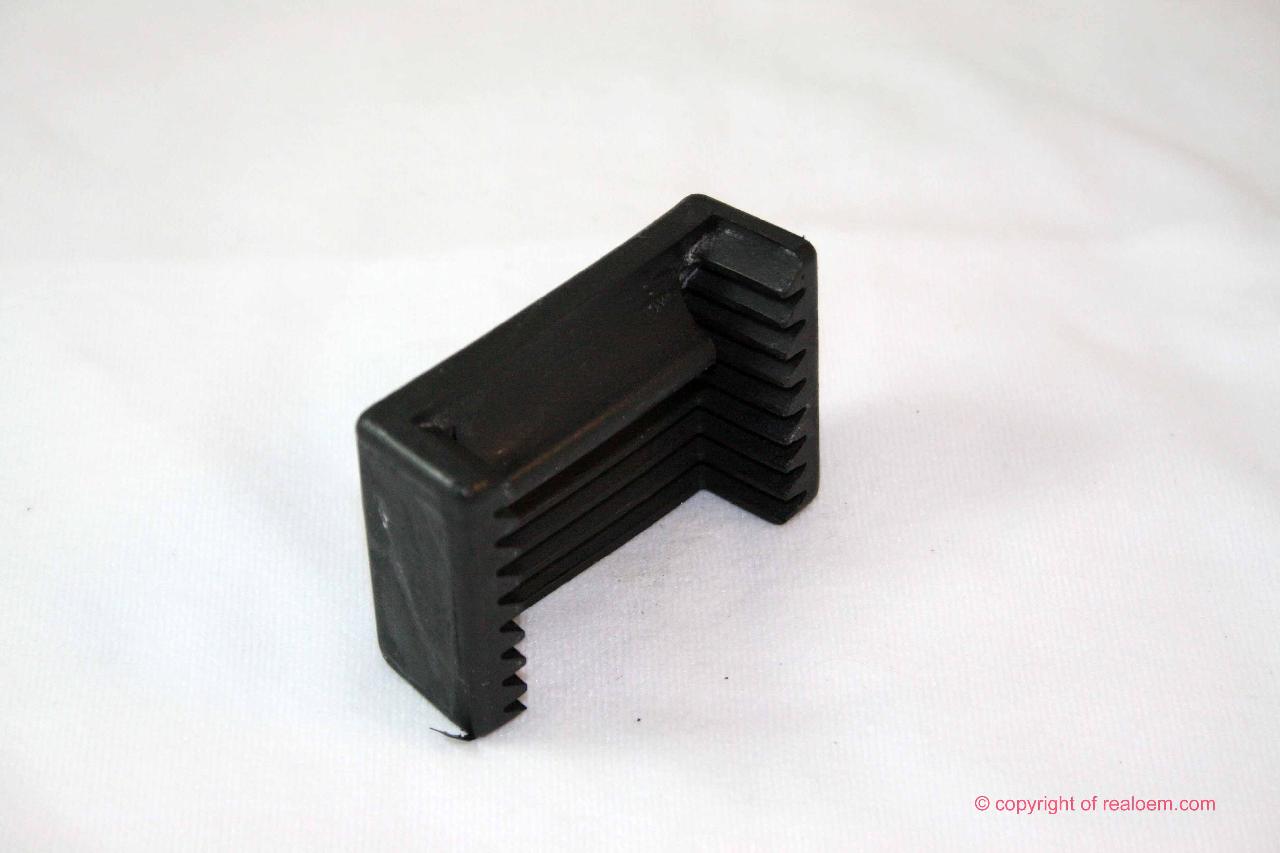

| 06 | Rubber Mounting | 2 | 09/1982 | 17111100000 | $4.46 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M6X18 | 1 | 09/1982 | 23317545769 | $0.67 | Shop at ECS Tuning | |||
| 08 | Bow | 1 | 09/1982 | 11531251145 | $1.51 | ENDED | Shop at ECS Tuning | |||
| 10 | Fan shroud | 1 | 09/1982 | 17111115083 | $25.34 | Shop at ECS Tuning | ||||
| 11 | Washer | 4-200 HV-ZNS3 | 2 | 09/1982 | 07119904207 | Shop at ECS Tuning | ||||
| 12 | Fillister head self-tapping screw | ST4,2X13 | 2 | 09/1982 | 07119906748 | $0.18 | Shop at ECS Tuning | |||
| 13 | Base | 2 | 09/1982 | 17111100001 | $3.86 | ENDED | Shop at ECS Tuning | |||
| 14 | Temperature switch | 91-106CEL | 1 | 09/1982 | 61311363160 | $74.67 | Shop at ECS Tuning | |||

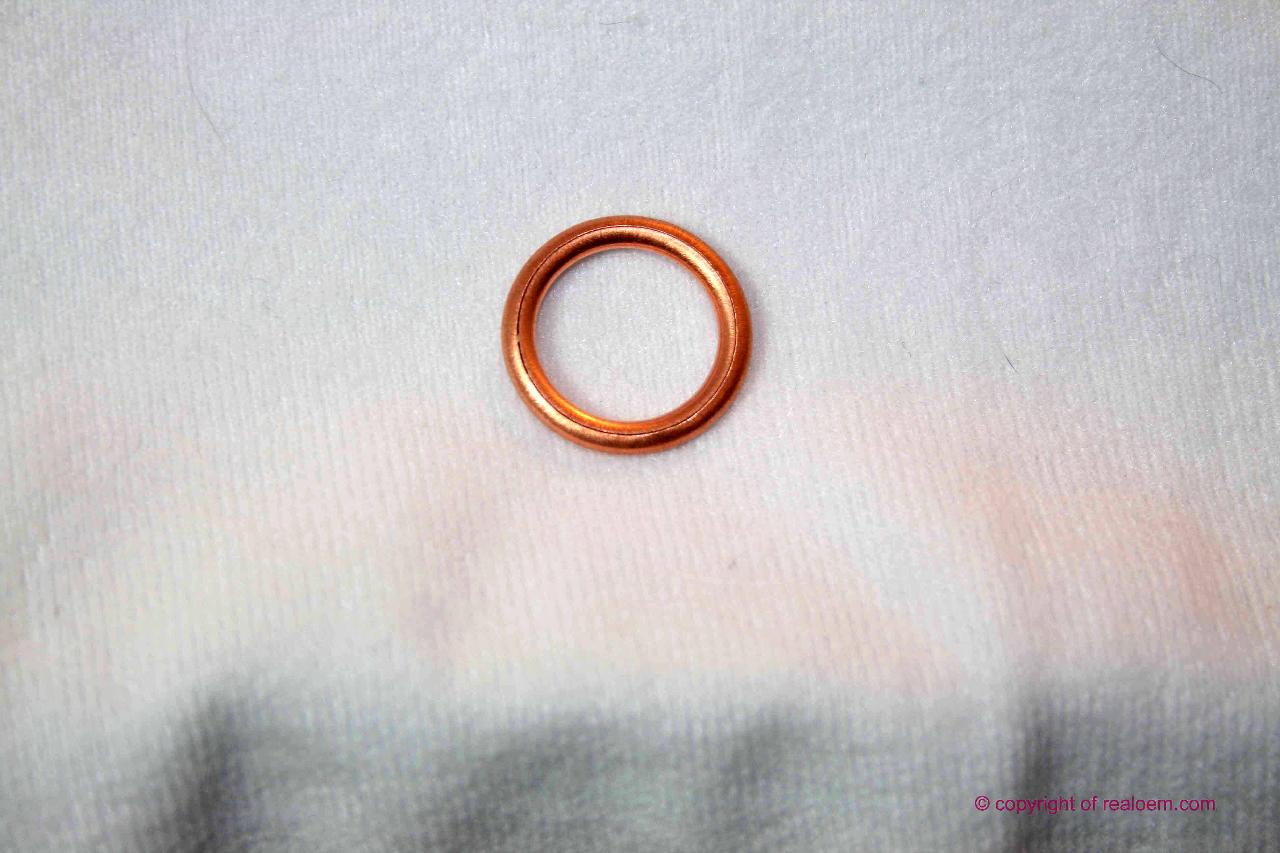

| 15 | Gasket ring | A14X20-CUAS | 1 | 09/1982 | 07119963244 | $0.41 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
