Transmission oil cooling for BMW 3 Series E30 320i (1992)

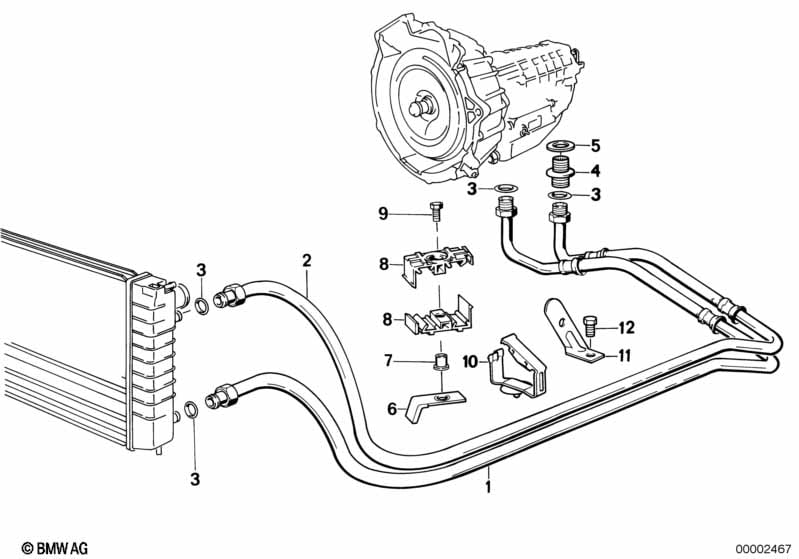

This Transmission oil cooling technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil cooling pipe inlet | 1 | 09/1987 | 17221719195 | $47.91 | Shop at ECS Tuning | ||||
| 02 | Oil cooling pipe outlet | 1 | 09/1987 | 17221719196 | $47.91 | Shop at ECS Tuning | ||||
| 03 | O-ring | 9,25X1,78/FPM | 4 | 09/1987 | 17211742635 | $0.80 | Shop at ECS Tuning | |||
| 04 | Threaded pipe joint | M16-M18X1,5-ALU | 2 | 09/1987 | 17221712213 | $4.40 | Shop at ECS Tuning | |||
| 05 | Gasket ring | A16X22-CU | 2 | 09/1987 | 07119963276 | $0.71 | Shop at ECS Tuning | |||
| 06 | Bracket oil pipe | 1 | 09/1987 | 17221719391 | $0.83 | Shop at ECS Tuning | ||||
| 07 | Spacer sleeve | D6 | 1 | 09/1987 | 17227798686 | $3.32 | Shop at ECS Tuning | |||
| 08 | Bracket oil pipe | 2 | 09/1987 | 17201712210 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X30-U2-ZNS3 | 2 | 09/1987 | 07119903994 | $0.65 | Shop at ECS Tuning | |||
| 10 | Bracket oil pipe | 1 | 09/1987 | 17221719407 | $1.33 | ENDED | Shop at ECS Tuning | |||
| 11 | Bracket oil pipe | 1 | 09/1987 | 17221719435 | $0.61 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex bolt | M8X16U2-8.8ZNS3 | 1 | 09/1987 | 07119904279 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X16-Z3 | 1 | 09/1987 | 17221719369 | $0.42 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Transmission oil cooling?
- This technical diagram illustrates the Transmission oil cooling within the Radiator group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Oil cooling pipe inlet (Part #17221719195).
- Which models use the hardware listed in this Transmission oil cooling?
- The hardware and components featured in the Transmission oil cooling are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Oil cooling pipe inlet (17221719195) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Transmission oil cooling assembly?
- Each item in the Transmission oil cooling corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Oil cooling pipe inlet by locating its position on the schematic, which then links to the official BMW part number 17221719195 for the Radiator section.
