Transmission oil cooling for BMW 3 Series E30 320i

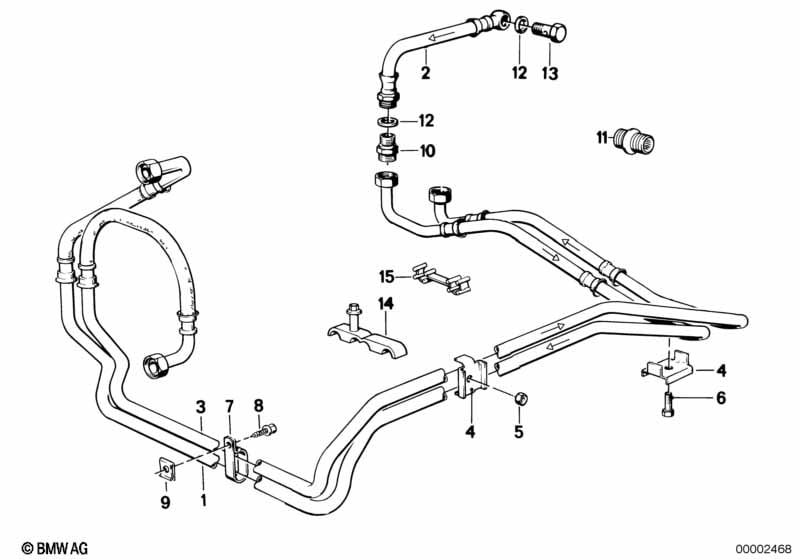

This Transmission oil cooling technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil cooling pipe inlet | 1 | 09/1987 | 17221712284 | $99.60 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 01 | Oil cooling pipe inlet | 4HP22 | 1 | 09/1987 | 17221712287 | $64.77 | ENDED | Shop at ECS Tuning | ||
| 02 | Oil cooling pipe inlet | 4HP22 | 1 | 09/1987 | 17221712285 | $83.15 | ENDED | Shop at ECS Tuning | ||
| 03 | Oil cooling pipe outlet | 1 | 09/1987 | 17221712286 | $99.60 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 03 | Oil cooling pipe outlet | 4HP22 | 1 | 09/1987 | 17221712288 | $83.15 | Shop at ECS Tuning | |||
| 04 | Clamp | 1 | 09/1987 | 17111150859 | $2.53 | Shop at ECS Tuning | ||||
| 04 | Clamp | 2 | 09/1987 | 17221116130 | $2.85 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M6-8-ZNNIV SI | 2 | 09/1987 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 08 | Hex head screw | ST6,3X38-C | 2 | 09/1987 | 07119916886 | $0.96 | Shop at ECS Tuning | |||
| 09 | Body nut | ST6,3-1-ZNS3 | 1 | 09/1987 | 07129904231 | Shop at ECS Tuning | ||||
| 11 | Threaded pipe joint | M16-M18X1,5-ALU | 2 | 09/1987 | 17221712213 | $4.40 | Shop at ECS Tuning | |||
| 12 | O-ring | 10,82X1,78/FPM | 2 | 09/1987 | 17211742636 | $0.80 | Shop at ECS Tuning | |||
| 13 | Hollow bolt | M14X1,5X26 | 1 | 32411094908 | $2.78 | ENDED | Shop at ECS Tuning | |||
| 14 | Clamp | 1 | 09/1987 | 17221712241 | $1.90 | Shop at ECS Tuning | ||||
| 15 | Fixing clamp | 1 | 09/1987 | 17221712242 | $1.97 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
