Engine oil cooling for BMW 3 Series E30 320i (1990)

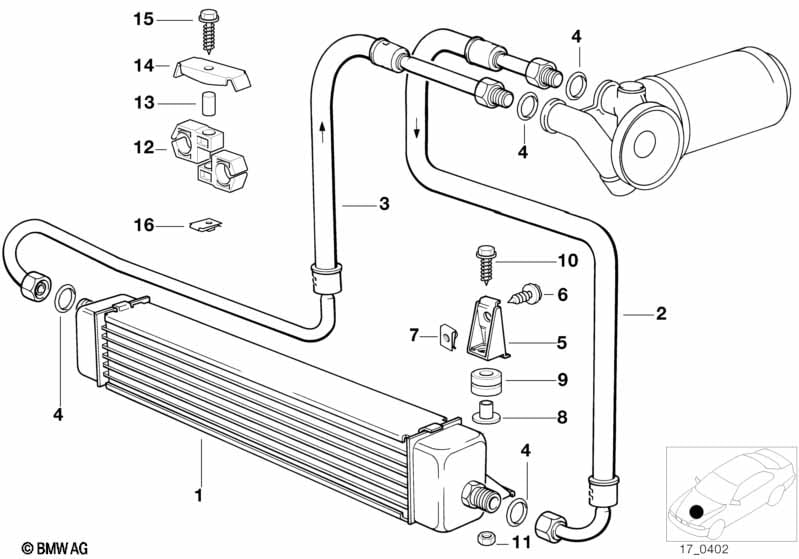

This Engine oil cooling technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Oil cooling pipe outlet | 1 | 17211719194 | $64.77 | SI 170190201 | Shop at ECS Tuning | ||||
| 03 | Oil cooling pipe inlet | 1 | 17211719193 | $109.29 | SI 170190201 | Shop at ECS Tuning | ||||
| 04 | O-ring | 13,4X1,78 | 4 | 17222245358 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Bracket oil cooler mounting | 2 | 17211719126 | $1.39 | Shop at ECS Tuning | |||||
| 06 | Hex head screw | B6,3X19-Z2 | 2 | 17111709443 | $0.44 | ENDED | Shop at ECS Tuning | |||
| 07 | Body nut | ST6,3-2-ZNS3 | 2 | 07129904232 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Bush | 2 | 17211712844 | $0.98 | Shop at ECS Tuning | |||||
| 09 | Rubber grommet | 2 | 17211712839 | $1.98 | Shop at ECS Tuning | |||||
| 10 | Hex head screw | B 6,3X34-Z2 | 2 | 17201719280 | $1.18 | ENDED | Shop at ECS Tuning | |||
| 11 | Hex nut | 2 | 51711924799 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 12 | Bracket oil pipe | 2 | 17211712759 | $3.70 | SI 170190201 | Shop at ECS Tuning | ||||
| 13 | Sleeve | 1 | 61131362361 | $2.83 | Shop at ECS Tuning | |||||
| 14 | Fixing clamp | 1 | 17211709491 | $9.47 | Shop at ECS Tuning | |||||
| 15 | Hex head screw | B6,3X50-Z1 | 1 | 17111709490 | $0.97 | ENDED | Shop at ECS Tuning |
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
