Engine oil cooling for BMW 3 Series E30 325i

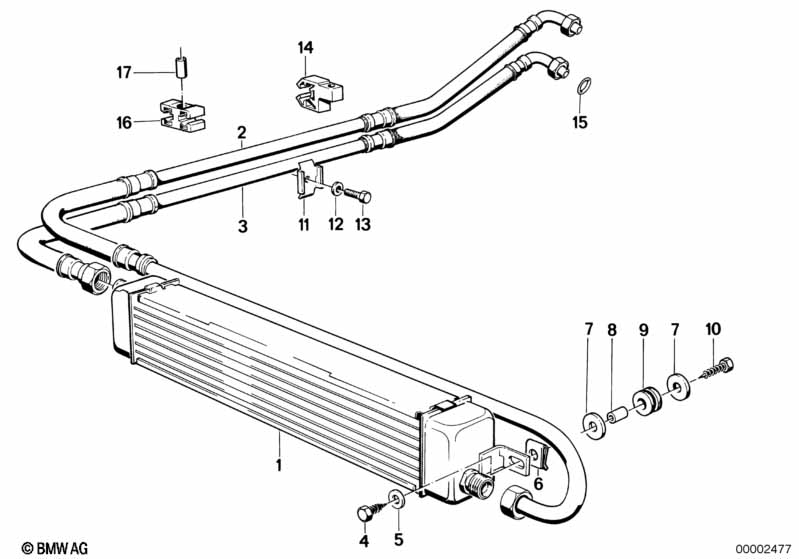

This Engine oil cooling technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil cooler | 1 | 09/1987 | 17218854495 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Washer | 7X29X2 | 4 | 09/1987 | 51436440260 | $0.39 | Shop at ECS Tuning | |||
| -- | Rubber grommet | 2 | 09/1987 | 17111117442 | $1.27 | Shop at ECS Tuning | ||||
| -- | Spacer sleeve | ZNS3 | 2 | 09/1987 | 07146977328 | $1.21 | Shop at ECS Tuning | |||
| -- | Hex head screw | ST6,3X38-C | 2 | 09/1987 | 07119916886 | $0.96 | Shop at ECS Tuning | |||
| 02 | Oil cooling pipe inlet | 1 | 09/1987 | 17211707863 | $64.77 | Shop at ECS Tuning | ||||
| 03 | Oil cooling pipe outlet | 1 | 09/1987 | 17211707864 | $47.91 | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST6,3X16-C-ZN | 2 | 09/1987 | 07119916822 | $0.20 | Shop at ECS Tuning | |||
| 05 | Washer | A6,4-200HV-ZNS3 | 2 | 09/1987 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 07 | Washer | 7X29X2 | 4 | 09/1987 | 51436440260 | $0.39 | Shop at ECS Tuning | |||
| 08 | Spacer sleeve | ZNS3 | 2 | 09/1987 | 07146977328 | $1.21 | Shop at ECS Tuning | |||
| 09 | Rubber grommet | 2 | 09/1987 | 17111117442 | $1.27 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | ST6,3X38-C | 2 | 09/1987 | 07119916886 | $0.96 | Shop at ECS Tuning | |||
| 11 | Fixing clamp | 1 | 09/1987 | 17211709491 | $9.47 | Shop at ECS Tuning | ||||
| 12 | Washer | A6,4-200HV-ZNS3 | 1 | 09/1987 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 13 | Hex head screw | ST6,3X50-C | 1 | 09/1987 | 07119916842 | $0.42 | ENDED | Shop at ECS Tuning | ||
| 14 | Bracket oil pipe | 2 | 09/1987 | 17211709492 | $1.57 | Shop at ECS Tuning | ||||
| 15 | O-ring | 13,4X1,78 | 4 | 09/1987 | 17222245358 | $1.18 | Shop at ECS Tuning | |||
| 16 | Bracket oil pipe | 2 | 09/1987 | 17211712759 | $3.70 | SI 170190201 | Shop at ECS Tuning | |||
| 17 | Sleeve | 1 | 09/1987 | 61131362361 | $2.83 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
