Engine oil cooling for BMW 7 Series E32 730iL (1988)

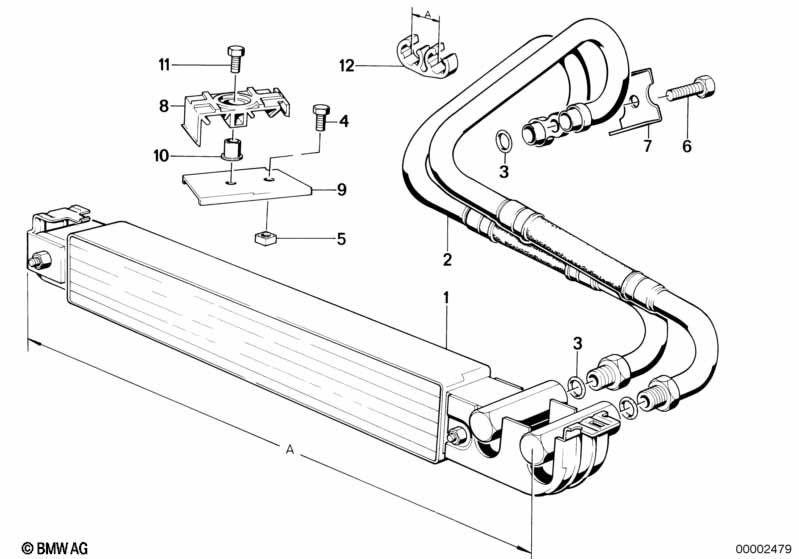

This Engine oil cooling technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil cooler-screw type connection | A=568MM | 1 | 17201712015 | $338.52 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 01 | Oil cooler-plug type connection | A=568MM | 1 | 17201712597 | $313.42 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter and Air conditioning and Hot-climate version |
S199A=No S530A=Yes S823A=Yes |
|||||||||
| 01 | Oil cooler-screw type connection | A=628MM | 1 | 17201712093 | $338.52 | Shop at ECS Tuning | ||||
| 01 | Oil cooler-plug type connection | A=628MM | 1 | 17201712596 | $338.52 | ENDED | Shop at ECS Tuning | |||
| 01 | Oil cooler | A=628MM | 1 | 17201712562 | Shop at ECS Tuning | |||||
| For vehicles with without catalytic converter and Air conditioning and Hot-climate version |
S199A=No S530A=Yes S823A=No |
|||||||||
| 01 | Oil cooler-screw type connection | A=628MM | 1 | 17201712093 | $338.52 | Shop at ECS Tuning | ||||
| 01 | Oil cooler-plug type connection | A=628MM | 1 | 17201712596 | $338.52 | ENDED | Shop at ECS Tuning | |||
| 01 | Oil cooler | A=628MM | 1 | 17201712562 | Shop at ECS Tuning | |||||
| For vehicles with without catalytic converter and Air conditioning and Hot-climate version |
S199A=No S530A=No S823A=Yes |
|||||||||
| 01 | Oil cooler-screw type connection | A=628MM | 1 | 17201712093 | $338.52 | Shop at ECS Tuning | ||||
| 01 | Oil cooler-plug type connection | A=628MM | 1 | 17201712596 | $338.52 | ENDED | Shop at ECS Tuning | |||
| 01 | Oil cooler | A=628MM | 1 | 17201712562 | Shop at ECS Tuning | |||||
| 02 | Oil cooling pipe-screw type connection | 793MM*807MM | 1 | 17211712361 | $154.04 | Shop at ECS Tuning | ||||
| 02 | Oil cooling pipe-plug type connection | 4HP-22 | 1 | 17211712546 | $359.35 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter and Air conditioning and Hot-climate version |
S199A=No S530A=Yes S823A=Yes |
|||||||||
| 02 | Oil cooling pipe-screw type connection | 892MM*919MM | 1 | 17211712362 | $154.04 | Shop at ECS Tuning | ||||
| 02 | Oil cooling pipe-plug type connection | 4HP-22 | 1 | 17211712547 | $160.04 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter and Air conditioning and Hot-climate version |
S199A=No S530A=Yes S823A=No |
|||||||||
| 02 | Oil cooling pipe-screw type connection | 892MM*919MM | 1 | 17211712362 | $154.04 | Shop at ECS Tuning | ||||
| 02 | Oil cooling pipe-plug type connection | 4HP-22 | 1 | 17211712547 | $160.04 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter and Air conditioning and Hot-climate version |
S199A=No S530A=No S823A=Yes |
|||||||||
| 02 | Oil cooling pipe-screw type connection | 892MM*919MM | 1 | 17211712362 | $154.04 | Shop at ECS Tuning | ||||
| 02 | Oil cooling pipe-plug type connection | 4HP-22 | 1 | 17211712547 | $160.04 | Shop at ECS Tuning | ||||
| 03 | O-ring | 13,4X1,78 | 4 | 17222245358 | $1.18 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X10-8.8-ZNS3 | 1 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Square nut | M6 | 1 | 07119904050 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X35-Z3 | 1 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X35 | 1 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Bracket | 1 | 17211719107 | ENDED | Shop at ECS Tuning | |||||
| 08 | Bracket oil pipe | 1 | 17201712209 | $3.52 | Shop at ECS Tuning | |||||
| 09 | Bracket oil pipe | 1 | 17211712232 | $1.90 | Shop at ECS Tuning | |||||
| 10 | Spacer sleeve | D6 | 1 | 17227798686 | $3.32 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M6X28-8.8-ZNS | 1 | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| 12 | Fixing clamp | A=39MM | 1 | 17221712572 | $1.63 | Shop at ECS Tuning | ||||
| 12 | Fixing clamp | A=25,5MM | 1 | 17221712573 | $1.97 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
