Engine oil cooling for BMW 5 Series E28 524td (1984)

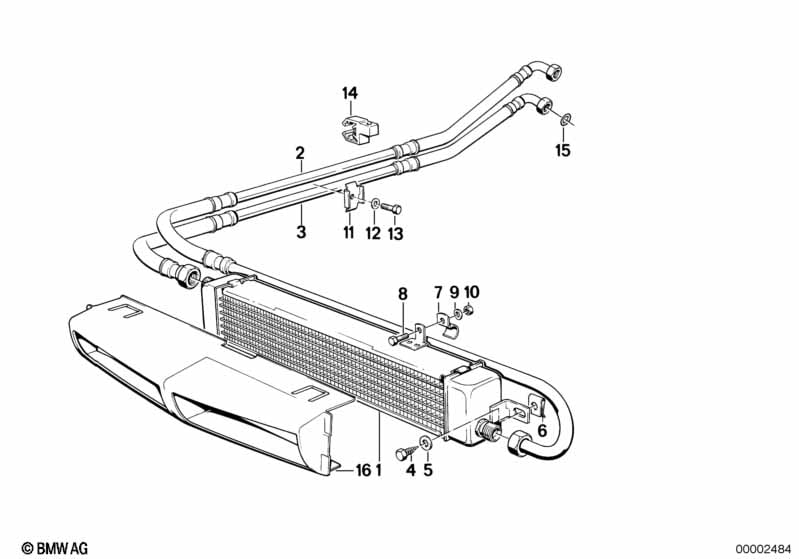

This Engine oil cooling technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil cooler | 1 | 17111177190 | Shop at ECS Tuning | ||||||
| 02 | Oil cooling pipe | 1 | 17221709451 | $88.88 | Shop at ECS Tuning | |||||
| 03 | Oil cooling pipe | 1 | 17221709452 | $59.55 | Shop at ECS Tuning | |||||
| 04 | Hex head screw | ST8X22-C | 2 | 07119916879 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST8,0-1 | 2 | 07129925749 | $0.41 | Shop at ECS Tuning | ||||
| 07 | Clamp | 1 | 17221153017 | $1.00 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Clamp | 1 | 17221153066 | $1.00 | Shop at ECS Tuning | |||||
| 12 | Washer | A8,4X25 | 1 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M6X28-8.8-ZNS | 1 | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| 16 | Air guide | 1 | 17111707892 | $19.24 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
