Electric additional fan for BMW 3 Series E30 325ix (1991)

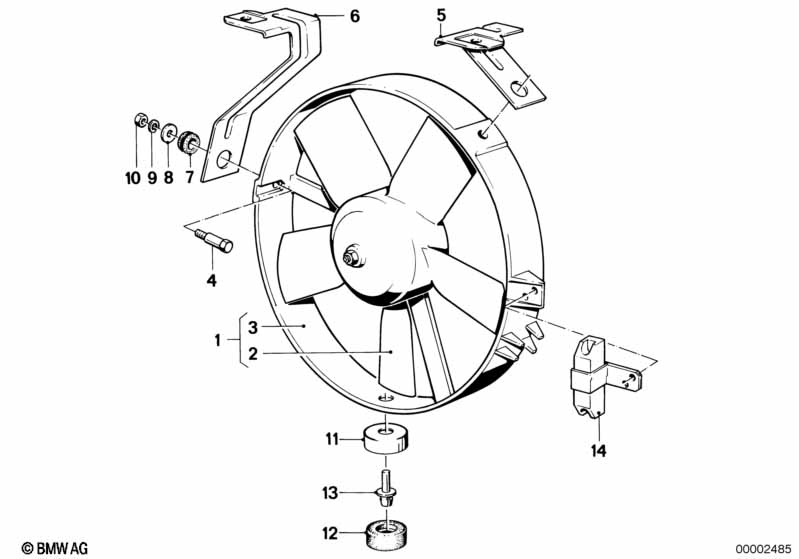

This Electric additional fan technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Additional fan | BOSCH | 1 | 17401373176 | $517.77 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Additional fan | 1 | 64541376973 | $393.43 | Shop at ECS Tuning | |||||
| 02 | Fan wheel | BOSCH | 1 | 17401362100 | $74.80 | Shop at ECS Tuning | ||||
| 03 | Fan shroud | BOSCH | 1 | 17401371261 | $154.88 | ENDED | Shop at ECS Tuning | |||
| 04 | Fit bolt | M5 | 3 | 17401354522 | $1.17 | Shop at ECS Tuning | ||||
| 05 | Bracket left | 1 | 17401372828 | $2.52 | Shop at ECS Tuning | |||||
| 06 | Bracket right | 1 | 17401372829 | $2.82 | Shop at ECS Tuning | |||||
| 07 | Rubber grommet | 3 | 17401362128 | $3.37 | Shop at ECS Tuning | |||||
| 08 | Washer | 3 | 17401354523 | $0.63 | Shop at ECS Tuning | |||||
| 09 | Spring washer | B5 | 3 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M5-8-ZNNIV SI | 3 | 07119905729 | Shop at ECS Tuning | |||||
| 11 | Bracket lower | 1 | 17401373069 | $1.53 | Shop at ECS Tuning | |||||
| 12 | Rubber Mounting | 1 | 17111150984 | $2.74 | Shop at ECS Tuning | |||||
| 13 | Expanding rivet | 1 | 17111150983 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 14 | Resistor | BOSCH | 1 | 17401373177 | $32.10 | SI 120787777 | Shop at ECS Tuning | |||
| 14 | Repair kit resistor | MAGNA | 1 | 64121388069 | $58.98 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
