Electric additional fan for BMW 5 Series E28 533i (1984)

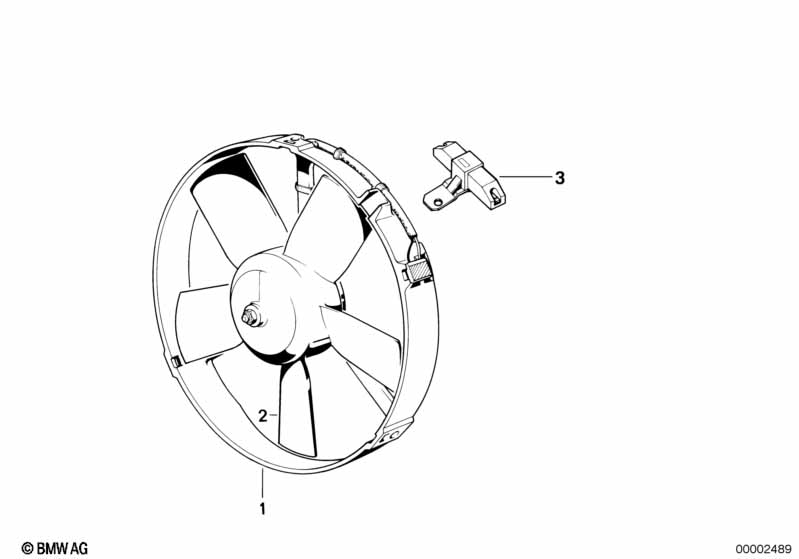

This Electric additional fan technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 533i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blower unit | 1 | 09/1984 | 64541377294 | $327.85 | ENDED | Shop at ECS Tuning | |||
| 02 | Fan wheel | BOSCH | 1 | 17401362100 | $74.80 | Shop at ECS Tuning | ||||
| 03 | Resistor | BOSCH | 1 | 17401373177 | $32.10 | SI 120787777 | Shop at ECS Tuning | |||
| 03 | Repair kit resistor | MAGNA | 1 | 64121388069 | $58.98 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 533i Electric additional fan?
- This technical diagram illustrates the Electric additional fan within the Radiator group for the 5 Series E28 533i produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Blower unit (Part #64541377294).
- Which models use the hardware listed in this Electric additional fan?
- The hardware and components featured in the Electric additional fan are specific to the 5 Series E28 533i produced during 1984. These technical specifications ensure that parts like the Blower unit (64541377294) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electric additional fan assembly?
- Each item in the Electric additional fan corresponds to the numbered list below the illustration. For the 5 Series E28 533i, you can identify the Blower unit by locating its position on the schematic, which then links to the official BMW part number 64541377294 for the Radiator section.
