Radiator/frame for BMW 5 Series E34 530i (1995)

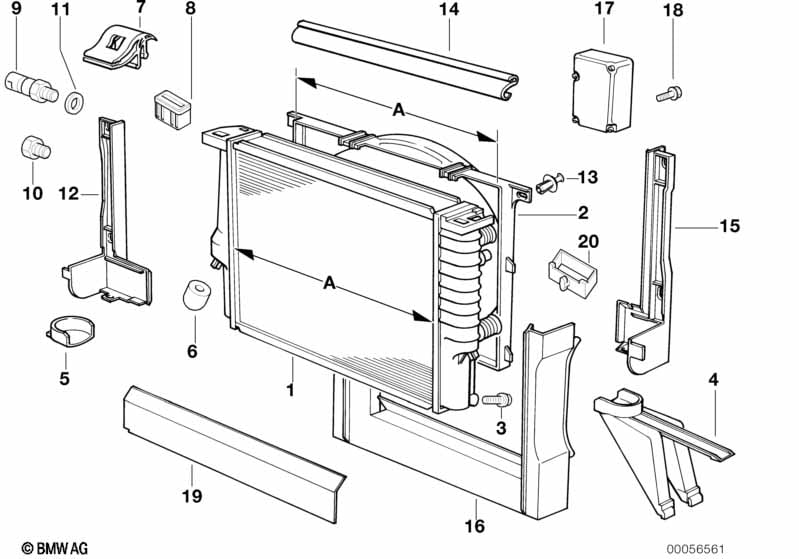

This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator | A=650MM | 1 | 06/1994 | 17111702453 | $405.97 | Shop at ECS Tuning | |||
| For vehicles with National version japan or National version Australia |
L807A=Yes L810A=Yes |
|||||||||
| 01 | Radiator | A=650MM | 1 | 09/1993 | 17111702453 | $405.97 | Shop at ECS Tuning | |||
| For vehicles with Air conditioning or Automatic air conditioning or Hot-climate version |
S530A=Yes S534A=Yes S823A=Yes |
|||||||||
| 01 | Radiator | A=650MM | 1 | 09/1993 | 17111702453 | $405.97 | Shop at ECS Tuning | |||
| 02 | Fan shroud with flaps | A=645MM | 1 | 06/1994 | 17111723977 | $41.27 | Shop at ECS Tuning | |||
| For vehicles with Air conditioning or Automatic air conditioning or Hot-climate version |
S530A=Yes S534A=Yes S823A=Yes |
|||||||||
| 02 | Fan shroud with flaps | A=645MM | 1 | 17111723977 | $41.27 | Shop at ECS Tuning | ||||
| 04 | Bracket f.radiator | 10MM | 1 | 06/1994 | 17111178449 | $1.80 | Shop at ECS Tuning | |||
| 05 | Bracket f.radiator | 10MM | 1 | 06/1994 | 17111178449 | $1.80 | Shop at ECS Tuning | |||
| For vehicles with Air conditioning or Automatic air conditioning or Hot-climate version |
S530A=Yes S534A=Yes S823A=Yes |
|||||||||
| 05 | Bracket f.radiator | 10MM | 2 | 17111178449 | $1.80 | Shop at ECS Tuning | ||||
| 06 | Rubber buffer | 2 | 17111178412 | $1.68 | Shop at ECS Tuning | |||||
| 07 | Bracket upper | 2 | 17111712660 | $1.57 | Shop at ECS Tuning | |||||
| 08 | Rubber Mounting | 2 | 17111712911 | $1.18 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning or Automatic air conditioning or Hot-climate version |
S530A=Yes S534A=Yes S823A=Yes |
|||||||||
| 09 | Double temperature switch | 91/99CEL | 1 | 61311378073 | $32.46 | SI 120787(777) | Shop at ECS Tuning | |||
| 10 | Screw plug | M14X1,5-ZN/PBX | 1 | 07119919146 | $2.35 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A14X18-CU | 1 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Covering right | 1 | 17111719311 | $9.83 | Shop at ECS Tuning | |||||
| 13 | Expanding rivet | X | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 14 | Profile-gasket | L=647MM | 1 | 09/1993 | 17111728779 | $6.47 | Shop at ECS Tuning | |||
| 15 | Covering left | 1 | 17111719312 | $9.83 | Shop at ECS Tuning | |||||
| 16 | Frame section | 1 | 17111723724 | $32.37 | Shop at ECS Tuning | |||||
| 17 | Sensor f. AUC | 1 | 64111390325 | $177.33 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bracket f.sensor AUC | AUC | 1 | 64118390598 | $1.80 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M5X 12MM | 4 | 07119905138 | Shop at ECS Tuning | |||||
| 19 | Covering Lower | 1 | 17111723451 | $8.38 | Shop at ECS Tuning | |||||
| 20 | Bracket, fan housing | 1 | 17111440193 | $5.82 | Shop at ECS Tuning | |||||
Notes
- SI = Service Information
