Charge-air cooling for BMW 3 Series E36 318tds (1999)

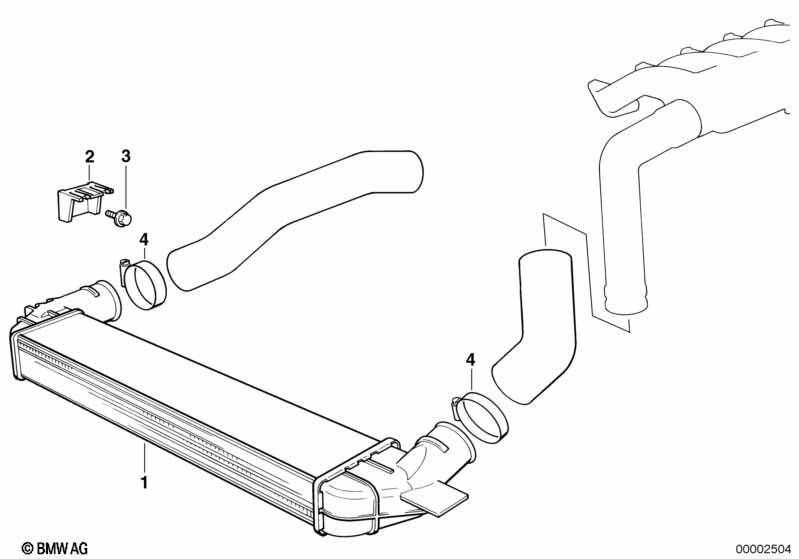

This Charge-air cooling technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Charge-air cooler | 1 | 17512245512 | $279.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Sealing strip | 1 | 17112245970 | Shop at ECS Tuning | ||||||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 01 | Charge-air cooler | 1 | 17512245512 | $279.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Sealing strip | 520X20X50 | 1 | 17112245591 | Shop at ECS Tuning | |||||
| 02 | Fixing clamp | LLK | 2 | 17512245513 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318tds Charge-air cooling?
- This technical diagram illustrates the Charge-air cooling within the Radiator group for the 3 Series E36 318tds produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Charge-air cooler (Part #17512245512).
- Which models use the hardware listed in this Charge-air cooling?
- The hardware and components featured in the Charge-air cooling are specific to the 3 Series E36 318tds produced during 1999. These technical specifications ensure that parts like the Charge-air cooler (17512245512) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Charge-air cooling assembly?
- Each item in the Charge-air cooling corresponds to the numbered list below the illustration. For the 3 Series E36 318tds, you can identify the Charge-air cooler by locating its position on the schematic, which then links to the official BMW part number 17512245512 for the Radiator section.
