Radiator/frame for BMW 5 Series E39 528i (2000)

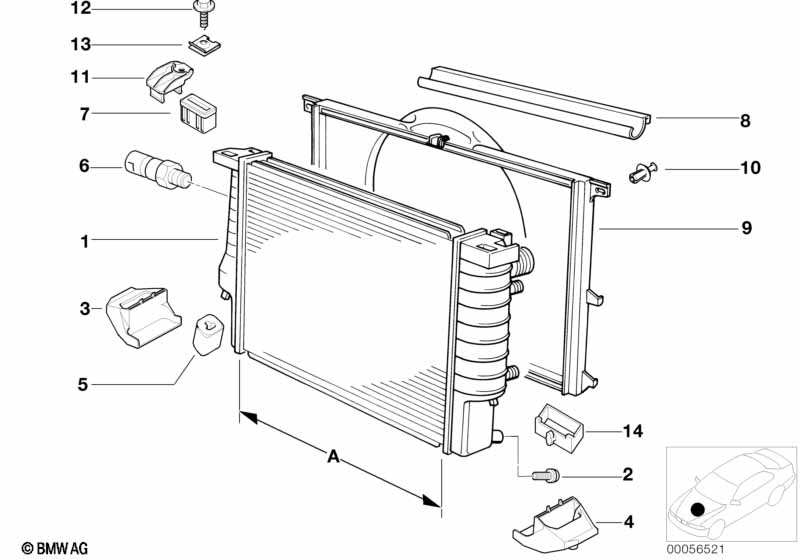

This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Bracket right | 1 | 17111737707 | $9.62 | Shop at ECS Tuning | |||||
| 04 | Bracket left | 1 | 17111737706 | $9.62 | Shop at ECS Tuning | |||||
| 05 | Rubber Mounting | 2 | 17111737704 | $5.83 | Shop at ECS Tuning | |||||
| 07 | Rubber Mounting | 2 | 17111712911 | $1.18 | Shop at ECS Tuning | |||||
| 10 | Expanding rivet | 2 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 11 | Bracket upper | 2 | 17111740315 | $1.18 | Shop at ECS Tuning | |||||
| 12 | Sheet metal screw | ST 4,8X16 | 2 | 07119900794 | $0.24 | Shop at ECS Tuning | ||||
| 13 | Body nut | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning |
