Transmission oil cooling for BMW 5 Series E39 523i (2000)

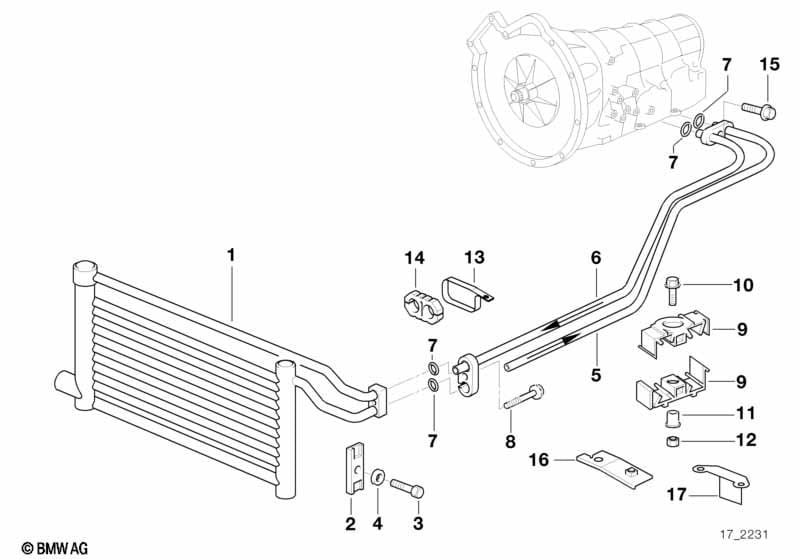

This Transmission oil cooling technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil cooler-plug type connection | 1 | 17221740798 | $338.52 | Shop at ECS Tuning | |||||
| 05 | Oil cooling pipe outlet | 5HP19 | 1 | 09/1998 | 17221714512 | $109.43 | +core | Shop at ECS Tuning | ||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 05 | Oil cooling pipe outlet | A5S 300J | 1 | 09/1998 | 17221744920 | $99.60 | +core | Shop at ECS Tuning | ||
| 06 | Oil cooling pipe inlet | 5HP19 | 1 | 09/1998 | 17221714511 | $110.18 | +core | Shop at ECS Tuning | ||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | Oil cooling pipe inlet | A5S 300J | 1 | 09/1998 | 17221744919 | $99.60 | +core | Shop at ECS Tuning | ||
| 07 | O-ring | 10,82X1,78/FPM | 4 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X30-Z3 | 2 | 07119915085 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Bracket oil pipe | 2 | 17201712210 | $1.02 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| 11 | Spacer sleeve | D6 | 1 | 17227798686 | $3.32 | Shop at ECS Tuning | ||||
| 12 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Screw | M8X28-Z3 | 1 | 17227555715 | $0.78 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
