Cooling holder for BMW 5 Series E39 528i (2000)

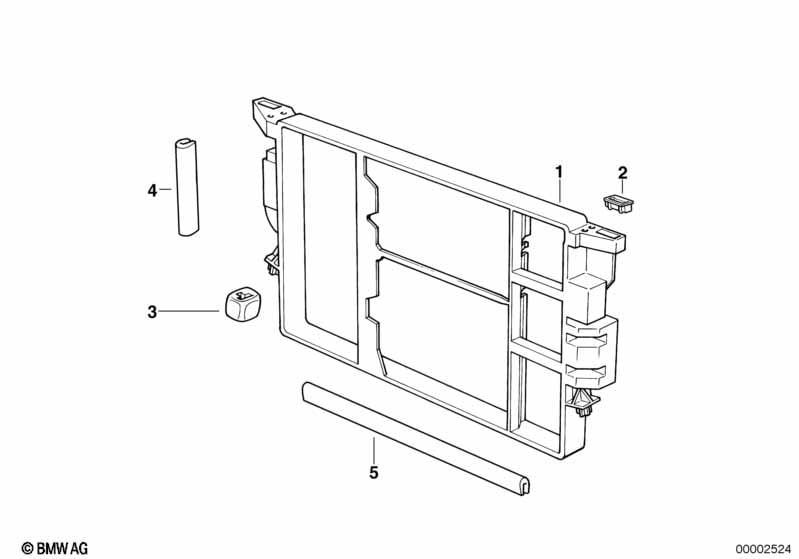

This Cooling holder technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Engine oil cooling - main group 17 Transmission oil cooling - main group 17 Cooling coil - main group 32 Power steering - main group 32 Condensor f air conditioning - main group 64 |
|||||||||
| 01 | Frame section | 1 | 09/1998 | 17111740796 | $97.10 | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning and Hot-climate version |
S534A=Yes S823A=Yes |
|||||||||
| 01 | Frame section | 1 | 17111740796 | $97.10 | Shop at ECS Tuning | |||||
| 02 | Rubber Mounting | 2 | 17111712911 | $1.18 | Shop at ECS Tuning | |||||
| 03 | Rubber Mounting | 2 | 17111737704 | $5.83 | Shop at ECS Tuning | |||||
| 04 | Profile-gasket | L=429MM | 3 | 17101737861 | $6.47 | Shop at ECS Tuning | ||||
| 05 | Profile-gasket | L=634MM | 2 | 17101737862 | $6.47 | Shop at ECS Tuning | ||||
