Engine oil cooling for BMW 7 Series E38 725tds (2000)

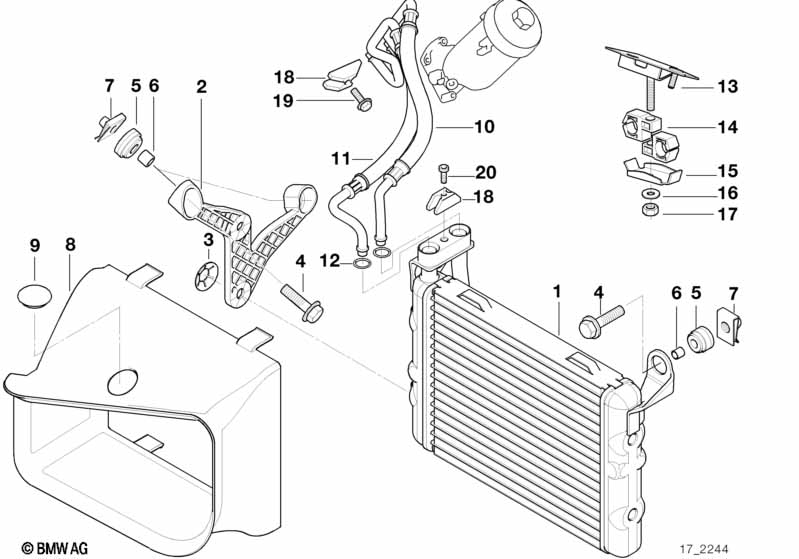

This Engine oil cooling technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 725tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil cooler | 1 | 17212246027 | $426.82 | Shop at ECS Tuning | |||||
| 02 | Bracket oil cooler mounting | 1 | 17212246029 | $40.88 | Shop at ECS Tuning | |||||
| 03 | Circlip | 1 | 17212246030 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M6X30-U2-ZNS3 | 2 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| 05 | Rubber grommet | 3 | 31421232245 | $1.87 | Shop at ECS Tuning | |||||
| 06 | Sleeve | 3 | 17212245019 | Shop at ECS Tuning | ||||||
| 07 | C-clip nut | M6-ZNS3 | 3 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 08 | Air channel | 1 | 17212246026 | $5.65 | Shop at ECS Tuning | |||||
| 09 | Blind plug | D=30MM | 1 | 51718168260 | $0.50 | Shop at ECS Tuning | ||||
| 10 | Oil cooling pipe inlet | 1 | 17222246695 | +core | Shop at ECS Tuning | |||||
| 11 | Oil cooling pipe outlet | 1 | 17222246696 | +core | Shop at ECS Tuning | |||||
| 12 | O-ring | 13,4X1,78 | 4 | 17222245358 | $1.18 | Shop at ECS Tuning | ||||
| 13 | Bracket oil pipe | 1 | 17222246041 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hex nut wiht flange | M8 | 1 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 14 | Bracket oil pipe | 1 | 17222244847 | Shop at ECS Tuning | ||||||
| 15 | Plate | 1 | 17222244848 | Shop at ECS Tuning | ||||||
| 16 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 18 | Bracket oil pipe | 2 | 17212243052 | $8.28 | Shop at ECS Tuning | |||||
| 19 | Hex bolt with washer | M8X35-Z3 | 2 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 20 | Fillister head with washer | M8X30-Z3-8.8-ZN | 1 | 07119920137 | $0.62 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
