Charge-air cooling for BMW 5 Series E39 525tds (1998)

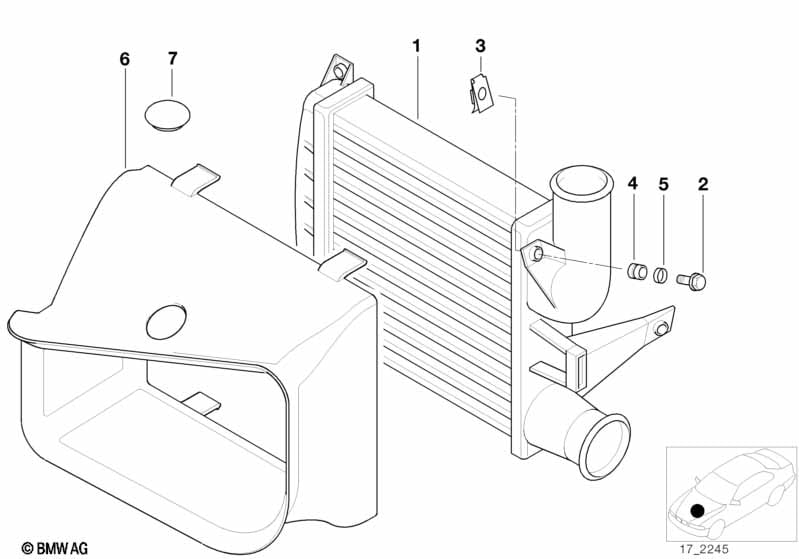

This Charge-air cooling technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Charge-air cooler | 1 | 17512246031 | $330.93 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M6X30-U2-ZNS3 | 2 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| 03 | C-clip nut | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 3 | 31421232245 | $1.87 | Shop at ECS Tuning | |||||
| 05 | Sleeve | 3 | 17212245019 | Shop at ECS Tuning | ||||||
| 06 | Air channel | 1 | 17512246032 | $7.04 | Shop at ECS Tuning | |||||
| 07 | Blind plug | D=30MM | 1 | 51718168260 | $0.50 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525tds Charge-air cooling?
- This technical diagram illustrates the Charge-air cooling within the Radiator group for the 5 Series E39 525tds produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Charge-air cooler (Part #17512246031).
- Which models use the hardware listed in this Charge-air cooling?
- The hardware and components featured in the Charge-air cooling are specific to the 5 Series E39 525tds produced during 1998. These technical specifications ensure that parts like the Charge-air cooler (17512246031) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Charge-air cooling assembly?
- Each item in the Charge-air cooling corresponds to the numbered list below the illustration. For the 5 Series E39 525tds, you can identify the Charge-air cooler by locating its position on the schematic, which then links to the official BMW part number 17512246031 for the Radiator section.
