Expansion tank for BMW 5 Series E39 528i (2000)

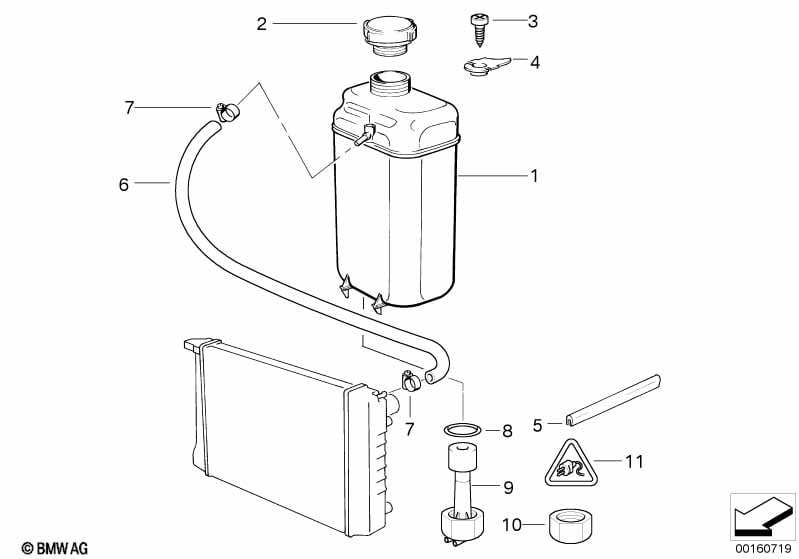

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Radiator cap | 2,0BAR | 1 | 17117639022 | Shop at ECS Tuning | |||||
| 03 | Vent screw | M10X1-SW | 1 | 17111712788 | $3.17 | Shop at ECS Tuning | ||||
| 04 | Cap | 1 | 17111723580 | $2.83 | Shop at ECS Tuning | |||||
| 06 | Vent hose | 1 | 17111427156 | $17.72 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L12-14,5 | 2 | 32411712735 | $0.62 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Expansion tank?
- This technical diagram illustrates the Expansion tank within the Radiator group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Radiator cap (Part #17117639022).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Radiator cap (17117639022) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Radiator cap by locating its position on the schematic, which then links to the official BMW part number 17117639022 for the Radiator section.
