Fan shroud for BMW 5 Series E39 523i (1998)

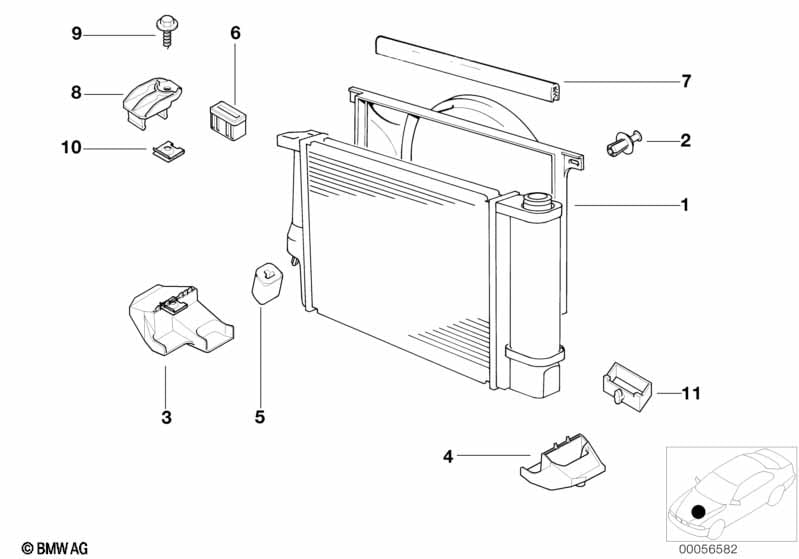

This Fan shroud technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Expanding rivet | 2 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 03 | Bracket right | 1 | 17111737707 | $9.62 | Shop at ECS Tuning | |||||
| 05 | Rubber Mounting | 2 | 17111737704 | $5.83 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 2 | 17111712911 | $1.18 | Shop at ECS Tuning | |||||
| 08 | Bracket upper | 2 | 17111740315 | $1.18 | Shop at ECS Tuning | |||||
| 09 | Sheet metal screw | ST 4,8X16 | 2 | 07119900794 | $0.24 | Shop at ECS Tuning | ||||
| 10 | Body nut | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Bracket, fan housing | 1 | 17111440193 | $5.82 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i Fan shroud?
- This technical diagram illustrates the Fan shroud within the Radiator group for the 5 Series E39 523i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Expanding rivet (Part #17111712963).
- Which models use the hardware listed in this Fan shroud?
- The hardware and components featured in the Fan shroud are specific to the 5 Series E39 523i produced during 1998. These technical specifications ensure that parts like the Expanding rivet (17111712963) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fan shroud assembly?
- Each item in the Fan shroud corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Expanding rivet by locating its position on the schematic, which then links to the official BMW part number 17111712963 for the Radiator section.
