Fan housing, mounting parts for BMW 3 Series E46 320d

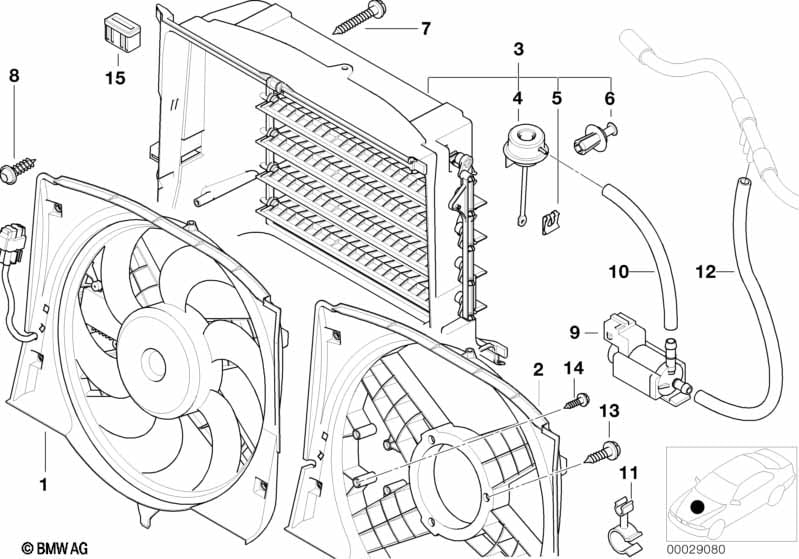

This Fan housing, mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 01 | Fan housing with fan | 1 | 17117801423 | $477.38 | Shop at ECS Tuning | |||||
| 02 | Fan shroud | 1 | 17117790897 | $85.10 | +core | Shop at ECS Tuning | ||||
| 03 | Venetian blind | 1 | 17117786682 | ENDED | Shop at ECS Tuning | |||||
| 04 | Vacumm box | 1 | 17327785060 | Shop at ECS Tuning | ||||||
| 05 | Clamp | A5 | 1 | 07129934906 | $0.53 | Shop at ECS Tuning | ||||
| 06 | Expanding rivet | 1 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 07 | Screw self-tapping | D6X40 ZNS3 | 1 | 17117536972 | $1.12 | Shop at ECS Tuning | ||||
| 08 | Screw self-tapping | D6X20 ZNS3 | 5 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 09 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 10 | Vacuum hose white | 3,5X2,0 | X | 11658507249 | Shop at ECS Tuning | |||||
| 11 | Clip retainer | 1 | 09/2001 | 61138368029 | $0.43 | Shop at ECS Tuning | ||||
| 12 | Vacuum hose white | 3,5X2,0 | X | 09/2001 | 11658507249 | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | M5X16 | 3 | 17427612897 | Shop at ECS Tuning | |||||
| 14 | Screw | K40X18 | 4 | 64548377799 | Shop at ECS Tuning | |||||
| 15 | Rubber Mounting | 2 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320d Fan housing, mounting parts?
- This technical diagram illustrates the Fan housing, mounting parts within the Radiator group for the 3 Series E46 320d. It provides a detailed exploded view of the components, identifying key parts such as the Fan housing with fan (Part #17117801423).
- Which models use the hardware listed in this Fan housing, mounting parts?
- The hardware and components featured in the Fan housing, mounting parts are specific to the 3 Series E46 320d. These technical specifications ensure that parts like the Fan housing with fan (17117801423) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fan housing, mounting parts assembly?
- Each item in the Fan housing, mounting parts corresponds to the numbered list below the illustration. For the 3 Series E46 320d, you can identify the Fan housing with fan by locating its position on the schematic, which then links to the official BMW part number 17117801423 for the Radiator section.
