expansion tank / mounting plate for BMW 3 Series E46 320d

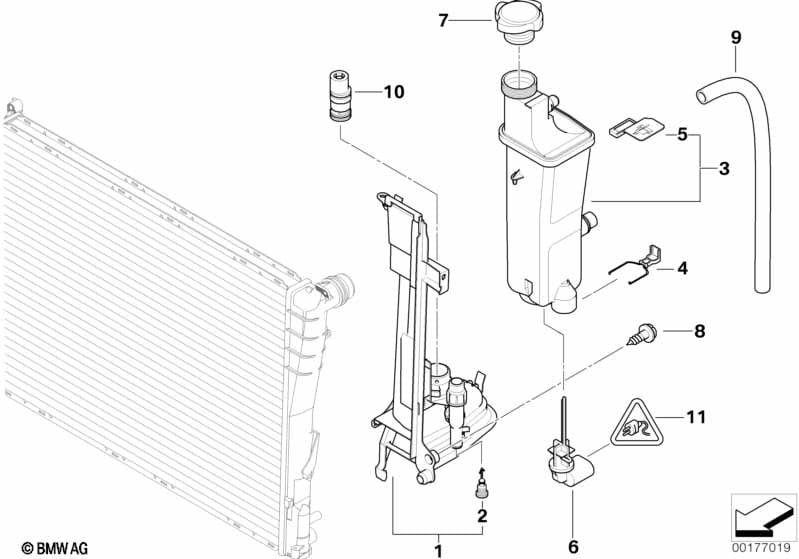

This expansion tank / mounting plate technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 01 | Mounting plate | 1 | 09/1999 | 17112354043 | Shop at ECS Tuning | |||||
| 02 | Screw plug | 1 | 17111707818 | $3.35 | Shop at ECS Tuning | |||||
| 03 | Expansion tank | 1 | 09/2001 | 17117573780 | $79.43 | Shop at ECS Tuning | ||||
| 04 | Clamp | 1 | 17132248252 | $5.73 | ENDED | Shop at ECS Tuning | ||||
| 05 | Label | 1 | 17111439721 | $3.15 | ENDED | Shop at ECS Tuning | ||||
| 06 | Level switch, coolant | 1 | 17137553919 | $17.42 | Shop at ECS Tuning | |||||
| 07 | Radiator cap | 1,4BAR | 1 | 17137639023 | Shop at ECS Tuning | |||||
| 08 | Screw self-tapping | D6X20 ZNS3 | 2 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 11 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 2 | 61130056961 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
