Transmission oil cooling for BMW 3 Series E46 318i (2001)

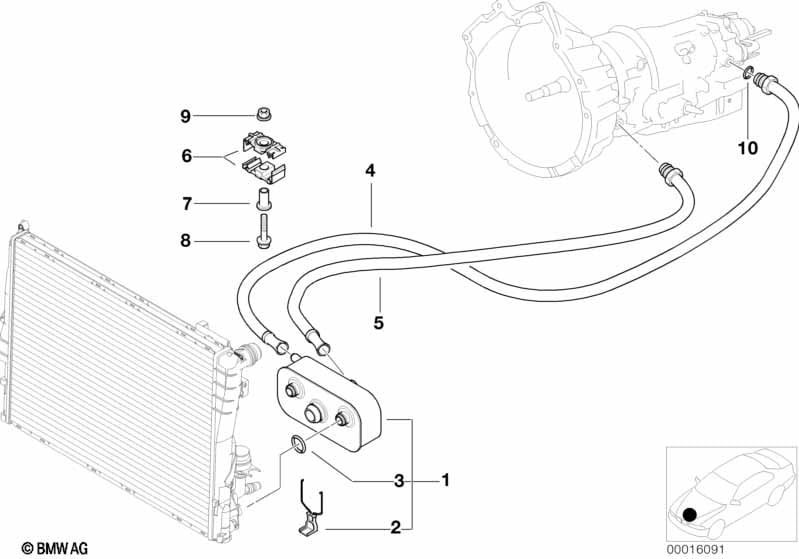

This Transmission oil cooling technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to AUTOMATIC TRANSMISSION |
|||||||||
| 01 | Heat exchanger | 1 | 17227505826 | $185.93 | Shop at ECS Tuning | |||||
| 02 | Clamp | 1 | 17221707786 | $3.77 | Shop at ECS Tuning | |||||
| 03 | O-ring | 14,5X2,5 | 2 | 17111711987 | $1.73 | Shop at ECS Tuning | ||||
| 04 | Oil cooling pipe outlet | A4S 360R | 1 | 09/1999 | 17227577627 | +core | Shop at ECS Tuning | |||
| 05 | Oil cooling pipe inlet | A4S 360R | 1 | 09/1999 | 17227577626 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Screw | M8X28-Z3 | 1 | 09/1999 | 17227555715 | $0.78 | Shop at ECS Tuning | |||
| 06 | Bracket oil pipe | 4 | 17201712210 | $1.02 | Shop at ECS Tuning | |||||
| 07 | Spacer sleeve | D6 | 2 | 17227798686 | $3.32 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X35-8.8-ZNS3 | 2 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex nut | 2 | 07129906887 | $0.56 | Shop at ECS Tuning | |||||
| 10 | O-ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
