Cooling system - water hoses for BMW 1500-2000CS 1800 (1971)

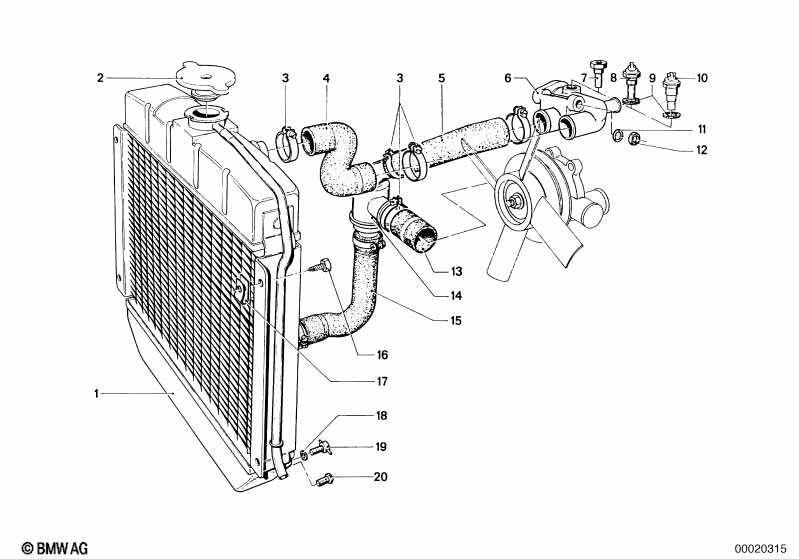

This Cooling system - water hoses technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Radiator cap | D=60 MM 1,0 BAR | 1 | 17111100848 | $17.06 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L37-43 | 8 | 07129952117 | $1.09 | Shop at ECS Tuning | ||||
| 04 | Hose | 1 | 02/1962 | 01/1972 | 11531266477 | $17.09 | Shop at ECS Tuning | |||
| 05 | Water hose | 1 | 11531266469 | $15.18 | Shop at ECS Tuning | |||||
| 06 | Screw plug | AM14X1,5 | X | 07119909704 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | A14X18-AL | X | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with Screw plug |
=Yes |
|||||||||
| 06 | Divider | 1 | 02/1962 | 01/1972 | 11531256642 | $202.83 | ENDED | Shop at ECS Tuning | ||
| 06 | Divider | 1 | 02/1962 | 01/1972 | 11531261528 | $70.67 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Screw Plug With Gasket Ring | M14X1,5 | 1 | 02/1962 | 01/1972 | 11121740003 | $3.68 | Shop at ECS Tuning | ||
| 09 | Gasket ring | A14X18-AL | 1 | 07/1968 | 01/1972 | 07119963200 | $0.38 | Shop at ECS Tuning | ||
| 12 | Hex nut wiht flange | M8 | 1 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 13 | Water hose | 1 | 11531266471 | $8.93 | Shop at ECS Tuning | |||||
| 14 | Thermostat | 80CEL | 1 | 11531253249 | $80.00 | Shop at ECS Tuning | ||||
| 15 | Hose | 1 | 02/1962 | 01/1972 | 11531256069 | $23.88 | ENDED | Shop at ECS Tuning | ||
| 16 | Sheet metal screw | B6,5X16 | 4 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 17 | Body nut | ST4,2-2 | 4 | 07129904245 | $0.25 | Shop at ECS Tuning | ||||
| 18 | Gasket ring | A6X10-CU | 1 | 07119963029 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 19 | Gasket ring | A08X11,5-CU | 1 | 07119963042 | $0.09 | Shop at ECS Tuning | ||||
| 20 | Screw plug | 1 | 17111101872 | $2.53 | ENDED | Shop at ECS Tuning | ||||
| without illustration | ||||||||||
| 21 | Screw plug | AM14X1,5 | X | 07119909704 | Shop at ECS Tuning | |||||
| 22 | Gasket ring | A14X18-AL | X | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
