Oil cooler/Oil cooling pipe for BMW 5 Series E39 540i (2003)

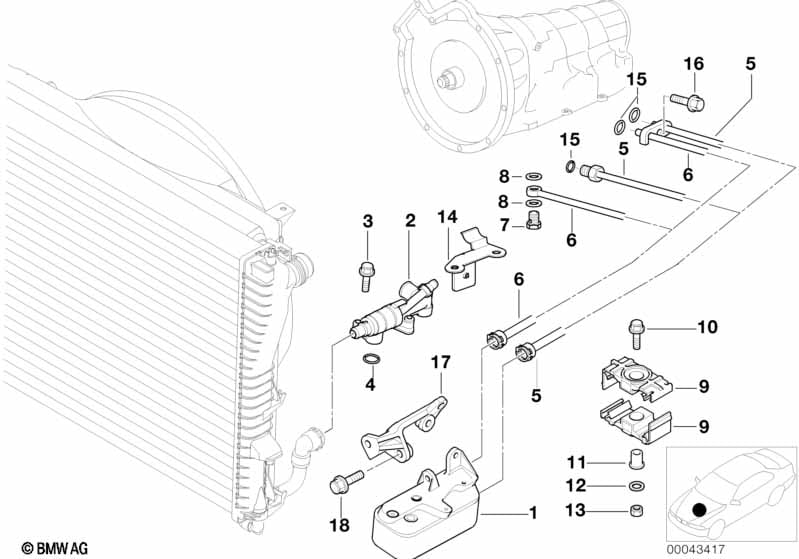

This Oil cooler/Oil cooling pipe technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat exchanger | 1 | 09/1998 | 17217505823 | $255.38 | Shop at ECS Tuning | ||||
| 02 | Voltage regulator | 1 | 09/1998 | 17211437772 | $105.03 | Shop at ECS Tuning | ||||
| 03 | Screw | M5X18 | 3 | 09/1998 | 17211437773 | $9.95 | Shop at ECS Tuning | |||
| 04 | O-ring | 14,5X2,5 | 2 | 17111711987 | $1.73 | Shop at ECS Tuning | ||||
| 05 | Oil cooling pipe outlet | 1 | 09/1998 | 17221711465 | $109.43 | +core | Shop at ECS Tuning | |||
| 06 | Oil cooling pipe inlet | 1 | 09/1998 | 17221711464 | $110.18 | +core | Shop at ECS Tuning | |||
| 07 | Hollow bolt | M18X1,5 | 1 | 17221723804 | $11.00 | Shop at ECS Tuning | ||||
| 08 | Washer-gasket | 18,7X26X1,5 | 2 | 17221723803 | $7.48 | Shop at ECS Tuning | ||||
| 09 | Bracket oil pipe | 4 | 17201712210 | $1.02 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X35-8.8-ZNS3 | 1 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| 11 | Spacer sleeve | D6 | 2 | 17227798686 | $3.32 | Shop at ECS Tuning | ||||
| 12 | Self-locking hex nut | M6 | 1 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 13 | Self-locking hex nut | M6 | 1 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 14 | Bracket oil pipe | 1 | 17221704314 | $4.48 | Shop at ECS Tuning | |||||
| 15 | O-ring | 10,82X1,78/FPM | 1 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| 16 | Screw | M8X28-Z3 | 1 | 17227555715 | $0.78 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
