Radiator/expansion tank/frame for BMW 7 Series E38 730d (2001)

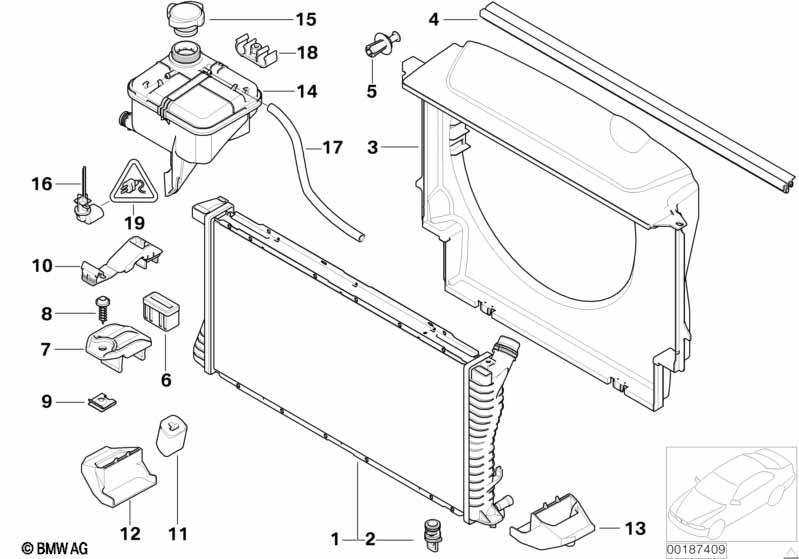

This Radiator/expansion tank/frame technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator | 1 | 17112247345 | $433.95 | Shop at ECS Tuning | |||||
| 02 | Drain plug radiator | 1 | 17112247346 | $9.22 | Shop at ECS Tuning | |||||
| 03 | Fan shroud | 1 | 17112247347 | Shop at ECS Tuning | ||||||
| 04 | Rubber strip | L=621MM | 1 | 17111737713 | $3.92 | Shop at ECS Tuning | ||||
| 05 | Expanding rivet | 2 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 2 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
| 10 | Clamping bracket | 2 | 17111737709 | $5.52 | Shop at ECS Tuning | |||||
| 11 | Rubber Mounting | 2 | 17112246750 | $14.84 | Shop at ECS Tuning | |||||
| 12 | Bracket right | 2 | 17111737707 | $9.62 | Shop at ECS Tuning | |||||
| 13 | Bracket left | 2 | 17111737706 | $9.62 | Shop at ECS Tuning | |||||
| 14 | Expansion tank | 1 | 17132248050 | $79.43 | Shop at ECS Tuning | |||||
| 15 | Radiator cap | 1,4BAR | 1 | 17137639023 | Shop at ECS Tuning | |||||
| 16 | Level switch, coolant | 1 | 17137553919 | $17.42 | Shop at ECS Tuning | |||||
| For vehicles with On-board computer V with remote control or On-board monitor with TV or Navigation system Professional |
S555A=Yes S602A=Yes S609A=Yes |
|||||||||
| 17 | Exhaust steam hose | 5X8X780 | 1 | 17121723272 | Shop at ECS Tuning | |||||
| 18 | Bracket expansion tank | 1 | 17111719190 | $0.83 | Shop at ECS Tuning | |||||
| 19 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 2 | 61130056961 | Shop at ECS Tuning | |||||
