Water hoses for BMW 3 Series E46 316i (2004)

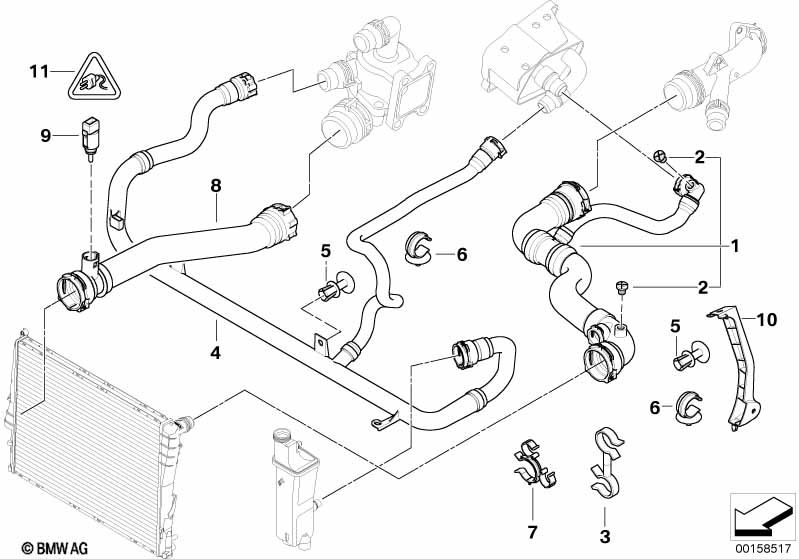

This Water hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water hose, inlet, thermostat | 1 | 17127520668 | $80.81 | +core | Shop at ECS Tuning | ||||
| 02 | Vent screw | M10 | 2 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | D=18/20 | 1 | 17221341603 | $1.87 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | 1 | 17127516025 | Shop at ECS Tuning | ||||||
| 04 | Water pipe, expansion tank/thermostat | 1 | 17127511204 | $107.30 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Expanding rivet | 3 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 06 | Cable holder | 2 | 12521747181 | $0.58 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | 1 | 08/2002 | 17127516023 | Shop at ECS Tuning | |||||
| For vehicles with EU2 exhaust emissions standard or Equipment for leaded fuel |
S168A=Yes S199A=Yes |
|||||||||
| 07 | Cable holder | 1 | 08/2002 | 12521747181 | $0.58 | Shop at ECS Tuning | ||||
| 08 | Water hose, outlet, thermostat | 1 | 09/2001 | 17127516416 | $34.43 | +core | Shop at ECS Tuning | |||
| 09 | Temperature sensor, coolant | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
| 10 | Hose clamp | 1 | 08/2002 | 17127516023 | Shop at ECS Tuning | |||||
| For vehicles with EU2 exhaust emissions standard or Equipment for leaded fuel |
S168A=Yes S199A=Yes |
|||||||||
| 10 | Hose clamp | 1 | 17127515829 | $6.92 | Shop at ECS Tuning | |||||
| 11 | Socket housing | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
