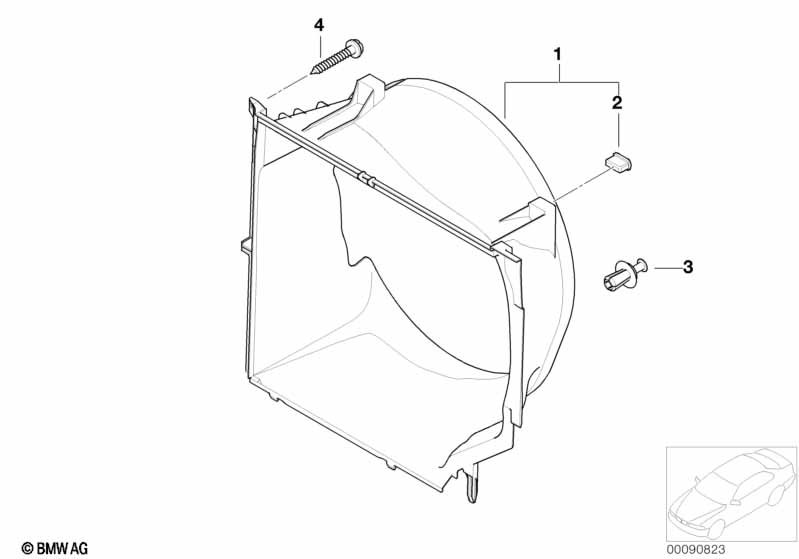

Fan housing, mounting parts for BMW 3 Series E46 320d
This Fan housing, mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission |
S205A=Yes |
||||||||
| 01 | Fan shroud | 1 | 09/2001 | 17112249371 | $58.87 | Shop at ECS Tuning | ||||
| 02 | Rubber Mounting | 2 | 09/2001 | 64118391475 | $1.03 | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | 1 | 09/2001 | 17111712963 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Screw self-tapping | D6X40 ZNS3 | 1 | 09/2001 | 17117536972 | $1.12 | Shop at ECS Tuning | |||
