Radiator/frame for BMW MINI R53 Cooper S

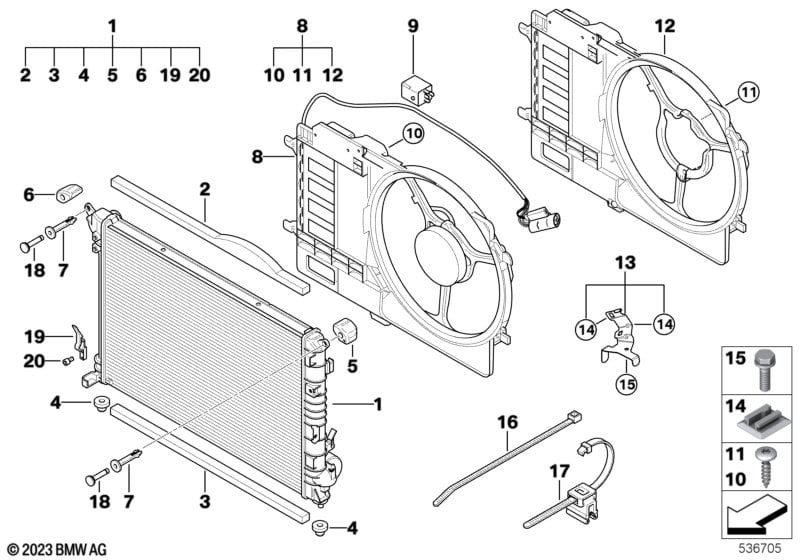

This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator | 1 | 17117570489 | $257.16 | Shop at ECS Tuning | |||||
| For vehicles with National version Canada |
L838A=Yes |
|||||||||
| 01 | Radiator | 1 | 17117570822 | $257.16 | Shop at ECS Tuning | |||||
| 02 | Top foam seal, radiator | 1 | 17107515479 | $7.17 | Shop at ECS Tuning | |||||
| 03 | Bottom foam seal, radiator | 1 | 17107515480 | $3.18 | Shop at ECS Tuning | |||||
| 04 | Rubber Mounting | 2 | 17107515477 | $3.52 | Shop at ECS Tuning | |||||
| 05 | Rubber mount for radiator, top left | 1 | 17107515476 | $5.83 | Shop at ECS Tuning | |||||
| 06 | Radiator rubber mount, top right | 1 | 17107515475 | $5.83 | Shop at ECS Tuning | |||||
| 07 | Expanding rivet | 2 | 17107515478 | $1.17 | Shop at ECS Tuning | |||||
| 08 | Fan housing with fan | 300W | 1 | 03/2003 | 17101475577 | $291.83 | +core | Shop at ECS Tuning | ||
| 08 | Fan housing with fan | 300W | 1 | 03/2003 | 17117541092 | $291.83 | +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Relay, make contact, white green | 1 | 03/2003 | 61368373700 | $13.96 | Shop at ECS Tuning | ||||
| 09 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 10 | Screw | 2 | 17107515483 | $5.83 | Shop at ECS Tuning | |||||
| 11 | Screw | 3 | 17107515482 | $0.87 | Shop at ECS Tuning | |||||
| 12 | Fan shroud | 1 | 17107515481 | $45.77 | +core | Shop at ECS Tuning | ||||
| 13 | Plug-in connection bracket | 1 | 17107514009 | $7.80 | Shop at ECS Tuning | |||||
| 14 | Bracket, plug connection gray | 2 | 61138365536 | $0.93 | Shop at ECS Tuning | |||||
| 15 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 17 | Cable strap with bracket | L=200MM | 3 | 61136916946 | $1.58 | Shop at ECS Tuning | ||||
| 18 | Pin | 2 | 17107515274 | $0.98 | Shop at ECS Tuning | |||||
| For vehicles with National version Canada |
L838A=Yes |
|||||||||
| 19 | Clip | 1 | 17107526316 | $11.31 | Shop at ECS Tuning | |||||
| 20 | Inner hex bolt | M3X0,5X12 | 2 | 17107526317 | $6.03 | ENDED | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
