Cover for BMW 7 Series E65 740i (2008)

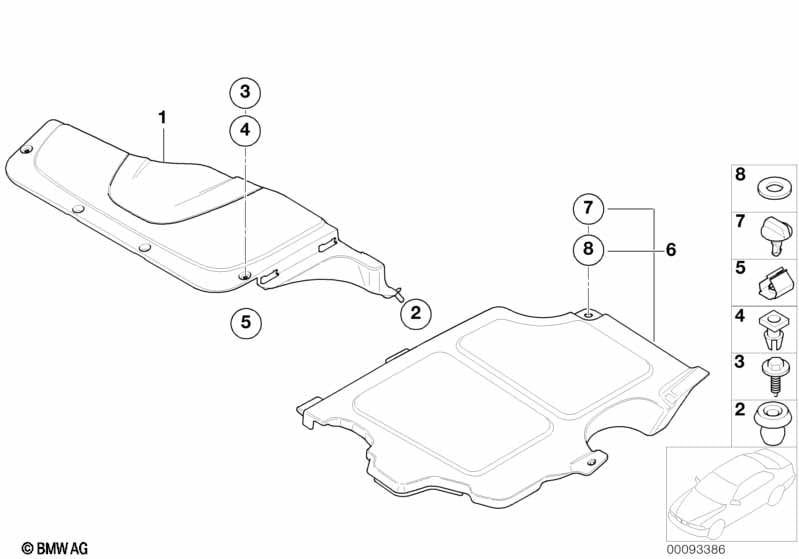

This Cover technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering center | 1 | 17117510908 | $35.32 | Shop at ECS Tuning | |||||
| 02 | Grommet | 1 | 64126910076 | $1.50 | Shop at ECS Tuning | |||||
| 03 | Torx bolt | K50 X 18 | 4 | 17117510907 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | BLACK | 4 | 63128374670 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Clamp | 2 | 51718204921 | $0.58 | Shop at ECS Tuning | |||||
| 06 | Covering left | 1 | 17117510909 | $39.10 | Shop at ECS Tuning | |||||
| 07 | Lock | 2 | 51718215962 | $0.69 | Shop at ECS Tuning | |||||
| 08 | Washer | 2 | 17117510906 | $0.35 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 740i Cover?
- This technical diagram illustrates the Cover within the Radiator group for the 7 Series E65 740i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Covering center (Part #17117510908).
- Which models use the hardware listed in this Cover?
- The hardware and components featured in the Cover are specific to the 7 Series E65 740i produced during 2008. These technical specifications ensure that parts like the Covering center (17117510908) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cover assembly?
- Each item in the Cover corresponds to the numbered list below the illustration. For the 7 Series E65 740i, you can identify the Covering center by locating its position on the schematic, which then links to the official BMW part number 17117510908 for the Radiator section.
